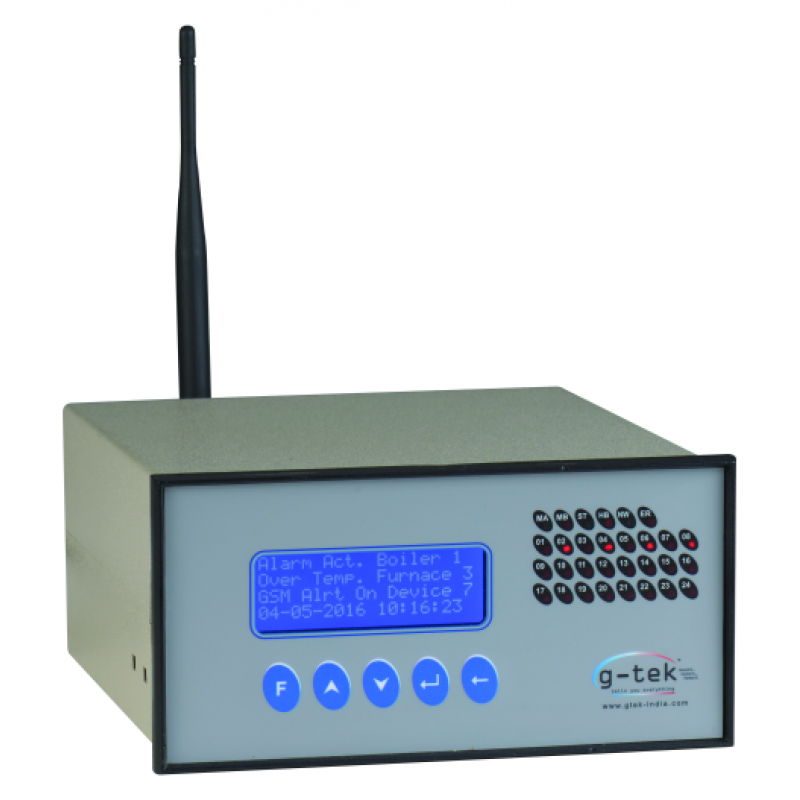

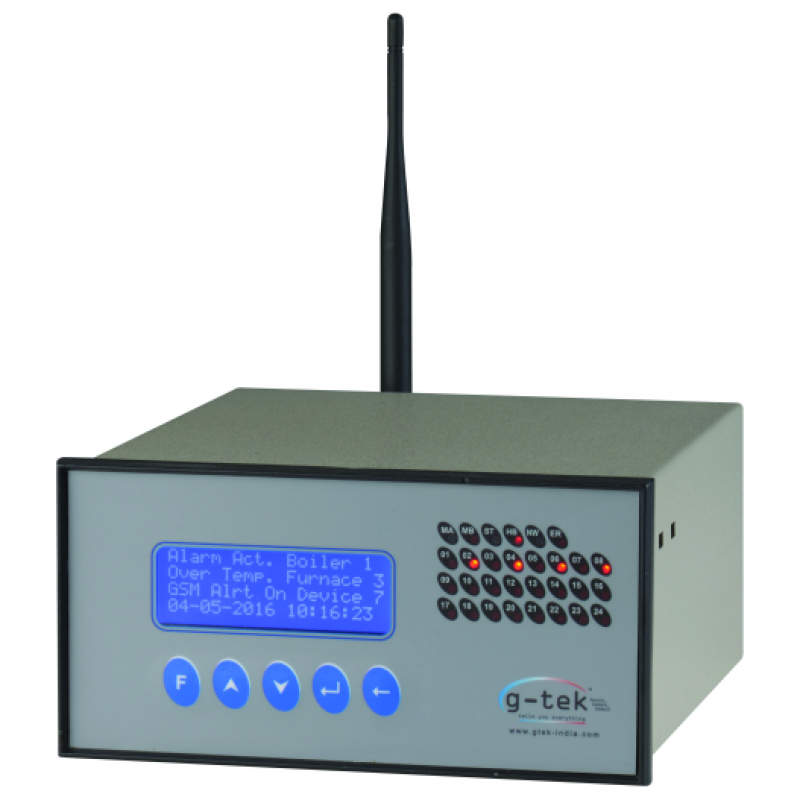

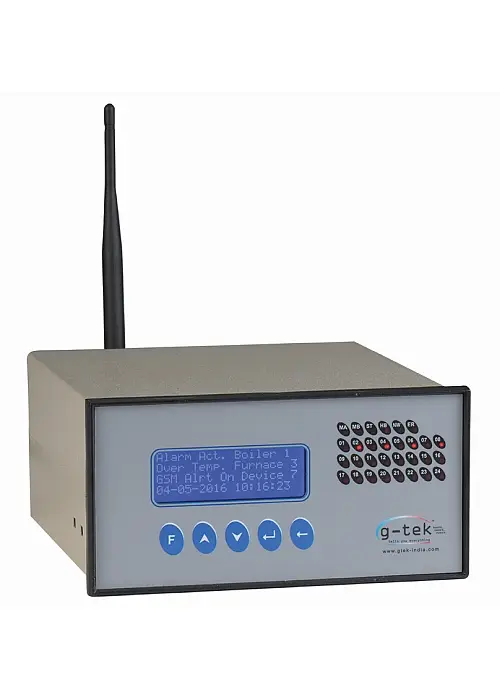

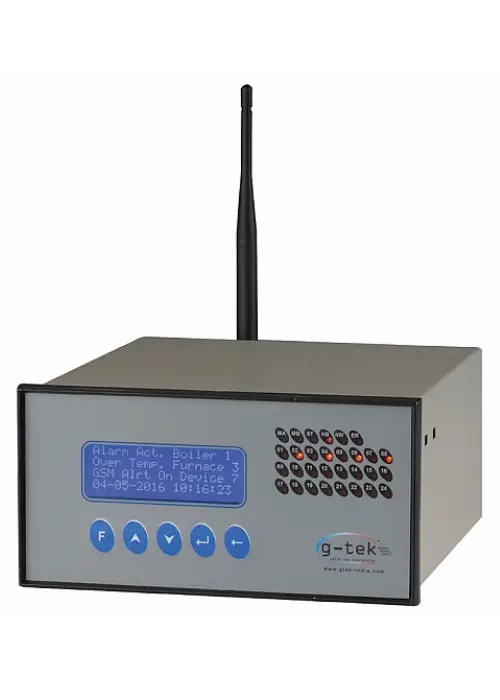

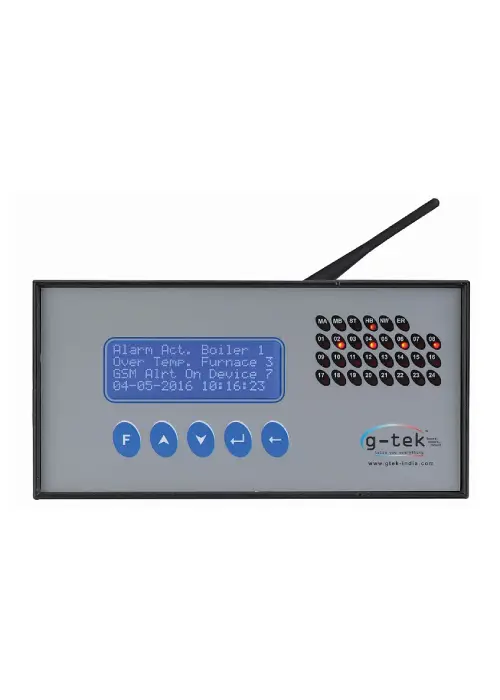

Scanner ERC800
TCP/IP protocol has become almost default preference when it comes to networking of the devices. The biggest advantage of TCP/IP is relatively easy availability of network devices and trained work force. With MODBUS over TCP/IP, it has become very easy to connect, control and monitor devices through central software.
The ERC-800 series TCP/IP Scanner of Ethernet based remote relay and display units is very helpful when you want to add remote alarm units on Ethernet network. Since it is Ethernet based, the device can be plugged in at any place and controlled easily from the control room.
This along with G-Tek’s networked software GtekNet, you can send the information about alarm condition being generated from any device to this unit along with the message on the display. The messages and relays on/off are fully configurable from software. Device operates on MODBUS TCP/IP so you can easily integrate with your existing system also. A buzzer is provided and can be set or reset remotely to attract the attention of the nearby person. It can be turned off for the pre-set time. User can also choose the add-on GSM module.
In case of pre-defined event (user configurable) this module will send voice or message to the user settable mobile numbers. Logs of successful sending or failure can also be downloaded for future reference.
Features
- Avoids complicated wiring process.
- Maximum of 12,1 Form C (NC-C-NO) relay with rating of 230V AC, 2Aresistive load
- On/off Status of each relay on individual LED.
- Integrated buzzer with user settable on/off time
- LCD (20×4 (20 characters by 4 line)) as display with TN reflective Blue over white.
- User settable Information on display
- Easy to operate
- TCP/IP based communication to connect with application.
- Auto reset of all relays in event of communication failure
- User can decide and set communication failure time from application
- Manual reset of buzzer from Keyboard
- GSM dialer for call and message alert (Optional)
- User settable mobile numbers for alerts and messages
- User settable SMS message with maximum length of 135 characters.
- User settable voice message
- Fully configurable, for mobile no to message and/or voice call
- Universal 85-264 V AC; 47-63Hz Power supply.
Specification
| Model No | ERC-800 series Ethernet-based remote Relay and Display |
| Product Code* | 8xx-x0 |
| Relay | |
| Contact form | Potential free Contact, 1 FORM C |
| Relay rating | 230V AC, 1A, Resistive load |
| No. of relay availability | Maximum 12 |
| Relay Status | Yes, LED for each individual Relay |
| Display and Operator Panels | |
| Display Type | LCD display with TN reflective Blue over white, 20X4 (20 characters by 4 line) |
| Display strings | User settable up to 20 character wide 4 strings |
| Type of strings | Normal |
| General | |
| Inputs | 1. Relay and buzzer ON/OFF command 2. Data (string) to display on LCD 3. Command for GSM alert from gtekNetTM 4. Auto reset time |
| Outputs | 1. Relay ON/OFF 2. Data (string) on LCD 3. GSM Alerts for different conditions* 4. Buzzer |
| Reset | 1. After fixed time of reset 2. From keyboard with fixed key sequence |
| RTC | Yes (Format: – DD/MM/YY HR/MN/SC) |
| PC application | Yes, to give all commands (Inputs) to system, download logs, to set GSM alert related information. |
| Web page | Yes, to provide general Device Information and to change Network Configuration. |
| Power Requirement | |
| Supply Voltage (Mains Operated) | 85-264VAC 47-63Hz |
| Battery backup | No |
| DC Adapter Operated | No |
| Buzzer | |
| Type | Single tone on alarm |
| Buzzer tone ON/OFF time | Yes, User settable through application |
| Keyboard | |
| No. of Keys | Two |
| Function of Keys | 1. To turn off the buzzer temporarily. 2. Test GSM Module |
| Alert over GSM | |
| Text Message | Yes, 135 characters long alerts, stored in memory. |
| Voice alert | Yes |
| No. of different voice message | One |
| Voice recording | Yes, Recordable through RJ11 Connector |
| Maximum no. of contacts | Up to 20* contacts, field programmable (configurable) through gtekNetTM application. |
| Events for alert | Field programmable (configurable) through gtekNetTM application. |
| Network status | Network signal status on web page and gtekNetTM application. |
| Communication | |
| PC Interface | Ethernet TCP/IP |
| Ethernet | 10 /100 Base T (IEEE 802.3) |
| Connector | RJ45 |
| Protocols Supported | MODBUS TCP/IP; HTTP; |
| Communication Activity LED | Yes |
| Isolation (Terminal – GND) | 1KV, 1 minute |
| Overall Dimension | |
| Dimension L x W x H (mm) | 210 x 190 x 95 mm |
| Panel cutout (mm) | 184 x 92 mm |
| Environmental | |
| Temperature (Operation) | 5˚C to 45˚C |
| Temperature (Limiting) | 0˚C to 50˚C |
| Temperature (Storage) | -20˚C to 60˚C |
| Humidity (Operation) | 10 to 80 % RH Non Condensing |
| Humidity (Storage) | 5 to 90 % RH Non Condensing |
| Altitude | <2000 meter |
| Safety | |
| Pollution Degree | II |
| Installation Category | III |
| Shock | NA |
| IP Rating | NA |
*Features depends on the options ordered; Specifications are subject to change without notice.

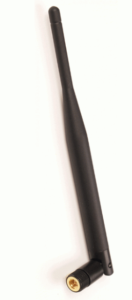

Accessories
Part No.: 200477
2. Ethernet Cable
Part No.: 236249
