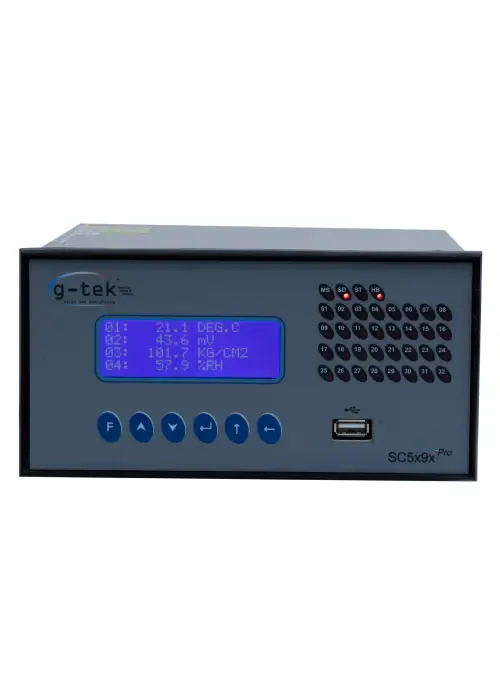

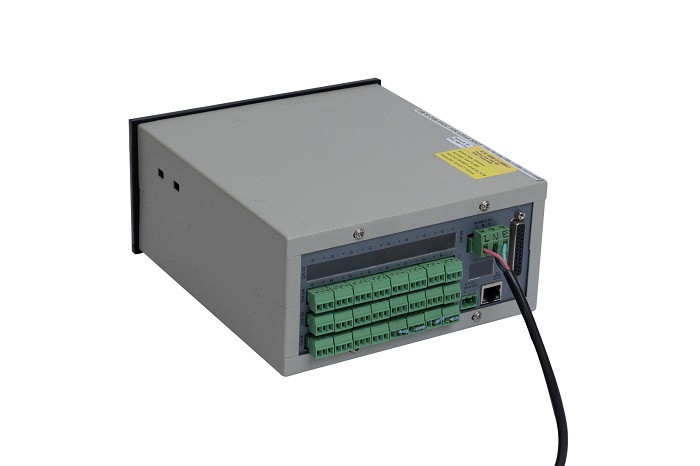

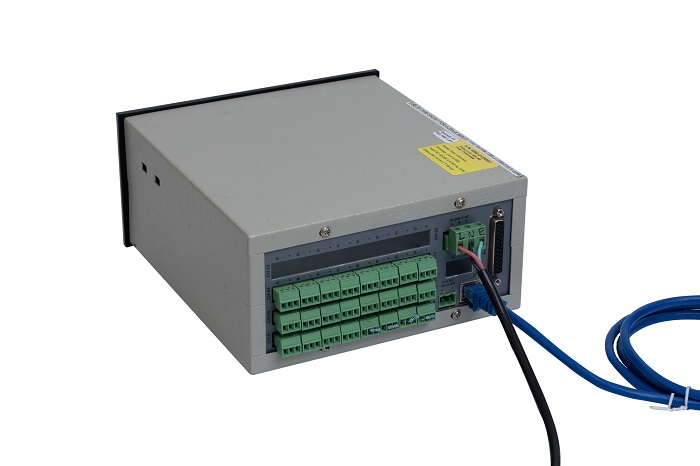

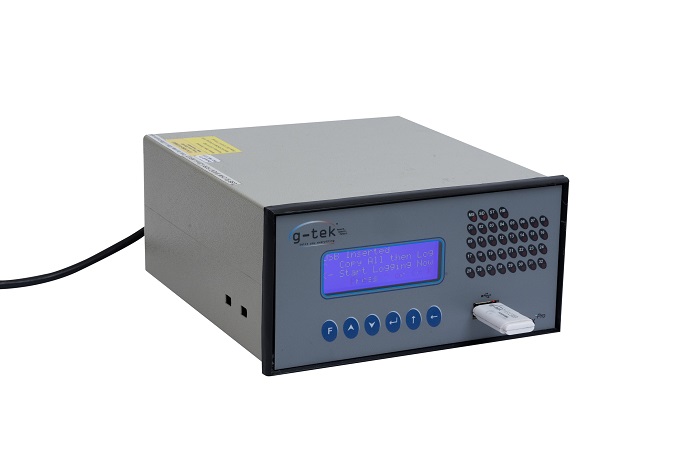

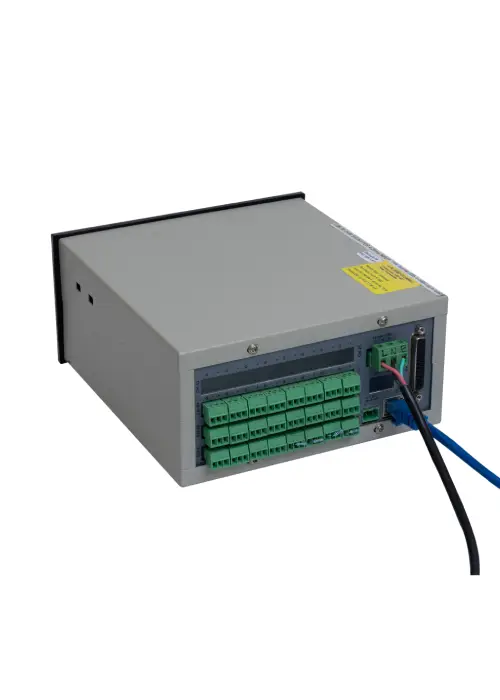

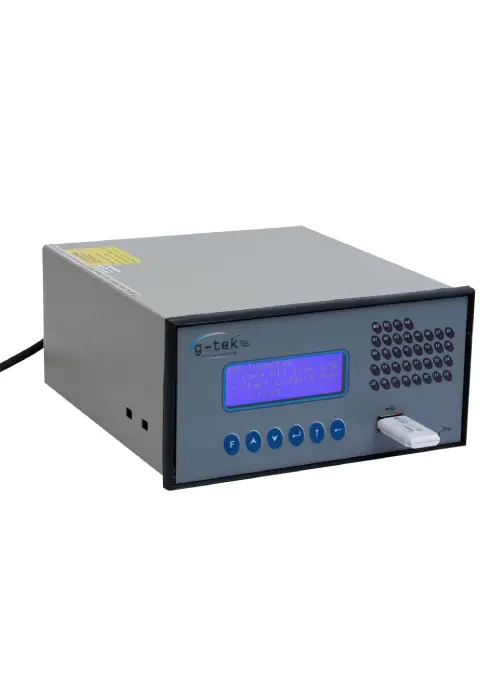

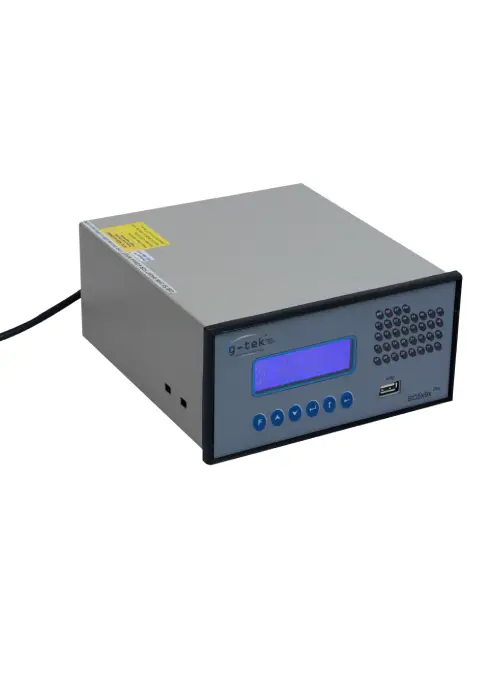

Series SC5x PRO Scanner

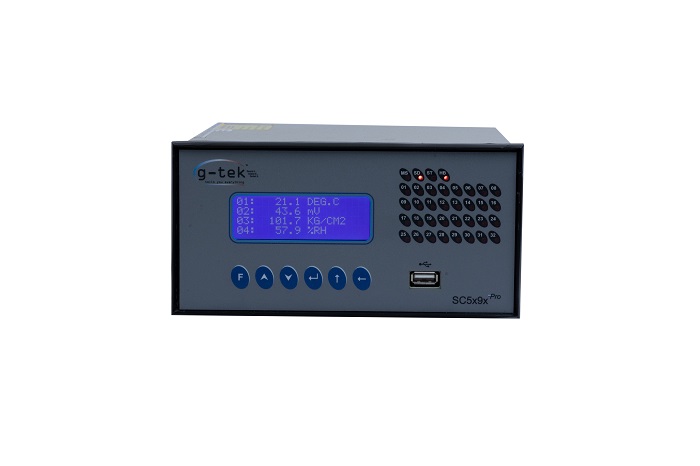

The PRO series of SC5x multichannel datalogger has enhanced memory, faster scan speeds, more no of channels, more sensor types, and Ethernet connectivity. The internal SD card has 16GB (expandable to 32GB) of storage capacity. The Monochrome LCD display allows user to continuously monitor the current data values with good readability and settings of configurations. Though only 6 keys are used, new user friendly and intuitive menu sequence makes it very easy to configure the scanner and get going quickly. It also has a USB host connectivity and data is automatically downloaded from internal SD card to memory device. There are host of optional features to choose from to suit your budget and needs. When used over TCP/IP, it can easily form a part of the large networked data loggers. It also supports gtekNetTM web-based software
Features
- Universal Input
- Number of Channels: 8, 16, 24, 32
- Scanning Speed: All Channels in 15 Seconds
- User-settable Resolution up to 0.0001
- 21 CFR Part 11 compliant
- Built-in SD Card (Optional) Storage – 16GB
- USB Host Interface
- If a flash drive is connected, then the data is downloaded automatically
- Ethernet connectivity
- Device Configuration from Desktop Application: gtekNet
- MODBUS TCP/IP Compliant
- Dot Matrix printer interface
- The storage interval can be set from 1 second to 18 hours
- The printing interval can be set from 1 minute to 18 hours
- Individual High/Low alarm setting
- 1 Relay Output
- Transmitter Power Supply
* Features depend on the product ordered. Please refer to the order code (Model No) of your product for exact features and capabilities.
Specification
| Model No | SC5x Pro Scanner / Data Logger |
| Display and Operator Panels | |
| Display Type | 4×20 Characters backlit LCD display white over blue |
| Status Indicator | Various LED indication for Data Storage, Device health, SD Card mount status, USB pen drive mount status and Alarm status Indication for each channel |
| Panel Keys | Front panel KB consisting of 6 keys for programming and configuration setting |
| Real Time Clock (RTC) | Scrolling of RTC along with other data; user can also fix one line to continuously Display RTC. |
| Event Notifications | Different events are notified on display |
| Display Blinking | On Alarm high – low Condition |
| Error Code | Various faults are indicated using Error Code on Display |
| Display Action | Display Rolling and Freeze (Does not Display skipped channel) |
| Log memory | % Log memory available on display |
| Sensor Connectivity | Sensor Failure Indication on Display (Open or Short) |
| Analog Input Details | |
| No Of Inputs | 8/16/24/32 Channels Max. |
| Sensor Input Type; Range and Accuracy | Types J, K, R, S, T; RTD PT-100; DIN43760, σ=0.00385; Vdc 0-1V; ±1V; 0-5V; ±5V; mA 4-20mA; 0-20mA (External Shunt Resistance of 50 Ω 0.1%) |
| Accuracy | ± 0.25% FSD ±1 digit |
| Resolution | 0.1 |
| CJC Error | ±0.9˚C for 0-50˚C |
| Data Scan Rate | Maximum 15 Seconds for all Channels |
| Protection | |
| Input Impedance RTD/TC/Volt | > 20 MΩ |
| Input Impedance mA | 50Ω ±0.1%, Shunt External |
| CMRR | >=110 dB@ 50, 60 Hz at 50 Sample per Second |
| NMRR | >=80 dB@ 50, 60 Hz at 50 Samples per Second |
| Maximum Common Mode Voltage | 5V AC |
| Batch Storage / Data Memory Details | |
| Start / Stop | Key Press / Remote Start – Stop |
| Store Interval | 1 Second to 18 Hrs |
| Memory Size | 16GB Standard / Expandable to 32GB / Stop on Full |
| Environmental | |
| Temperature (Operation) | 5ËšC to 45ËšC |
| Temperature (Limiting) | 0ËšC to 50ËšC |
| Temperature (Storage) | -20ËšC to 60ËšC |
| Humidity (Operation) | 10 to 80 % RH Non Condensing |
| Altitude | < 2000 meter |
| Power Requirement | |
| Supply Voltage | 85-264 VAC 47-63Hz |
| Power | 15W Max with Maximum Configuration |
| Communication | |
| PC Interface | Ethernet TCP/IP |
| Ethernet | 10 /100 Base T (IEEE 802.3) |
| Protocols Supported | MODBUS TCP/IP; HTTP; FTP |
| USB Host | If flash drive is connected then the data is downloaded automatically |
| Safety | |
| Safety/EMI-EMC | IEC 61010-1/ EN 61326 Class B |
| Pollution Degree | II |
| Installation Category | III |
| Overall Dimension | |
| Dimension L x W x D (mm) | 210 x 192 x 96 |
| Panel cut out (mm) | 184 x 92 |
Table 1: Accuracy and Range Table for various sensor inputs
| Sensor Accuracy at 25 ËšC | ||||||
| Sensor Type | Standard | Range | Error | Error% Input | Error% Range | Error Temperature Coefficient (ppm/°C) |
|---|---|---|---|---|---|---|
| RTD Type | ||||||
| Pt 100 | IEC751 | -200 to +850 | ±0.01˚C | ±0.04% | ±0.04% | 30ppm |
| T/C Type | ||||||
| B | IEC584.1 | +200 to +1800 | ±0.03˚C | ±0.05% | ±0.06% | 25ppm |
| C | Hoskins | 0 to +2300 | ±0.12˚C | ±0.05% | ±0.06% | 25ppm |
| E | IEC584.1 | -100 to +1000 | ±0.03˚C | ±0.05% | ±0.06% | 25ppm |
| J | IEC584.1 | -200 to +1200 | ±0.02˚C | ±0.05% | ±0.06% | 25ppm |
| K | IEC584.1 | -200 to +1372 | ±0.04˚C | ±0.05% | ±0.06% | 25ppm |
| N | IEC584.1 | -200 to +1300 | ±0.04˚C | ±0.05% | ±0.06% | 25ppm |
| R | IEC584.1 | 0 to +1750 | ±0.04˚C | ±0.05% | ±0.06% | 25ppm |
| S | IEC584.1 | 100 to +1750 | ±0.04˚C | ±0.05% | ±0.06% | 25ppm |
| T | IEC584.1 | -100 to +400 | ±0.02˚C | ±0.05% | ±0.06% | 25ppm |
| mV | ||||||
| 0 – 1 Volt | – | ±9999 | – | ±0.03% | ±0.03% | 25ppm |
| ±1 Volt | – | ±9999 | – | ±0.03% | ±0.03% | 25ppm |
| 0 – 5 Volt | – | ±9999 | – | ±0.03% | ±0.03% | 25ppm |
| ±5 Volt | – | ±9999 | – | ±0.03% | ±0.03% | 25ppm |
| mA – DC (External Shunt 50 Ω 0.1%) | ||||||
| 4-20mA | – | ±9999 | ±0.1% | ±0.03% | ±0.03% | 25ppm |
| 0-20mA | – | ±9999 | ±0.1% | ±0.03% | ±0.03% | 25ppm |
*Features depends on the options ordered; Specifications are subject to change without notice
Accessories
1. Panel Mounting Clamps: 2 numbers; Part No. 210034
2. Ethernet Cable: Part No.: 236249
