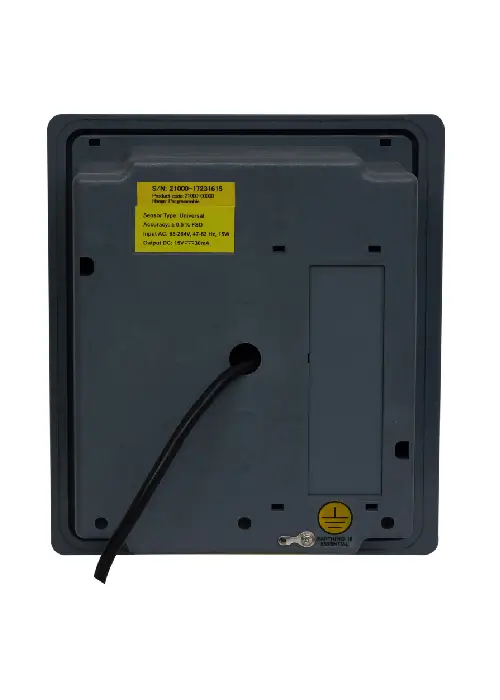

Circular Chart Recorder
– CR6″ 1P-2P

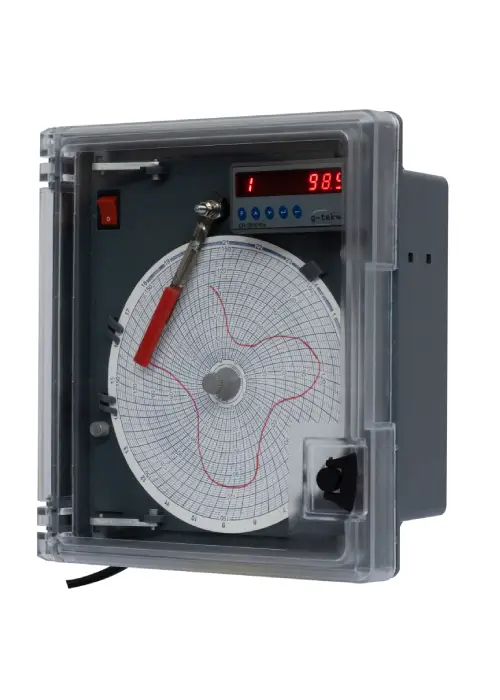

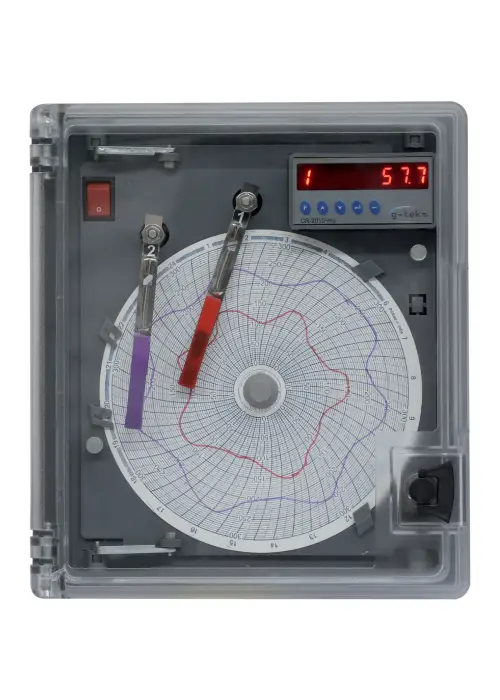

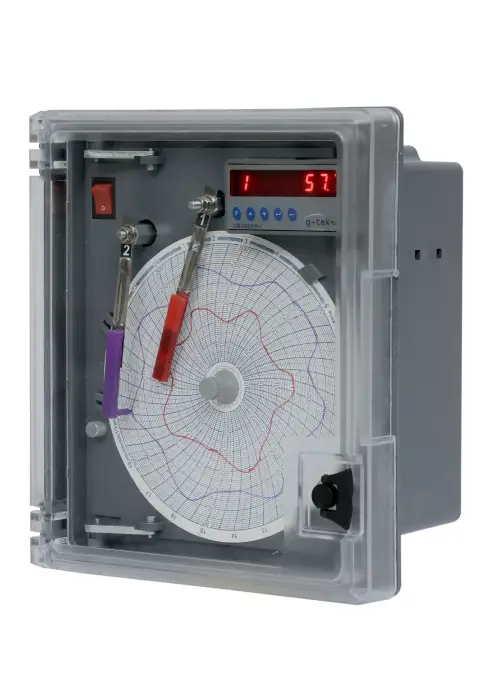

CR2010 series of circular chart recorders are available in 3 different sizes of the charts i.e. 4”, 6” and 11”. If you want better readability in small space, this 6” chart recorder is a perfect fit.
These recorders are widely used in low-temperature equipment, blood banks, incubators and many more places. It takes direct inputs from RTD Pt-100 / Thermocouples / process inputs like 4-20mA / 0-20mA / 0-1V. Standard chart speed varies from 1 hour/revolution to 255 hours/revolution.
These recorders are microcontroller based. Crystal controlled chart drive ensures accurate chart speed. Stepper motors for both pen and chart drive ensures no lag and no backlash.
With a cutout of 200 x170 mm and smallest depth, makes it very convenient to use. Transparent polycarbonate door makes the chart visible from distance. They come with a universal power supply as a standard feature. Other power supply inputs are also available.
Features
- 6” Chart Width
- Digital, 8 digit ultra-bright LED Numeric / semi alphabetic Display
- Single & Dual Analog Input Channel
- Direct Input standard PT-100 sensor
- Standard Input for popular Thermocouples like J/K/R/S/T
- Process Input through 4-20mA / 0-20mA / 0-1V
- Cost effective fixed sensor input or Field configurable sensor input
- 1 hour/rev to 255 hour/rev chart speed
- Universal Power Supply 85-264 V AC, 43-67 Hz
- Other power supply inputs on request
- Battery Back up
Specification
| Model No | CR2010 Series; 6″ recorder |
| Product Code* | 2xxxx |
| Recording System | |
| Pens: | |
| No. of Pens | 1/2 |
| Pen Marking | Continuous |
| Pen Response Time | <5Sec (Full Scale) |
| Pen Resolution | Stepper Motor Controlled better than 0.1% FSD |
| Overshoot | None |
| Chart: | |
| Chart Speed | 1 hour/rev to 255 hours/rev |
| Chart Calibrated Radius | 2.3″ (approx. 59mm) |
| Chart Ranges | Standard (Refer Table 2) / Customized Please specify |
| Display, Operator Panels and Input: | |
| Display Type | Digital, 8 digits ultra-bright LED Numeric/semi alphabetic |
| Display Height | 0.3” |
| Status Indicator | Channel Number and corresponding parameter values, prompts and messages displayed for ease for setup and programming. |
| Panel Keys | Front panel KB consisting of 5 keys for programming and calibration |
| Analog Input | RTD PT-100 / 0-1 V / 4-20 mA / 0-20 mA (External shunt resistance)/TCJ-K-R-S-T/0-1V |
| Sensor Type and Range | Refer to Table 1 |
| Scan Rate | Continuous 1 reading per second |
| Protection: | |
| Input Impedance | |
| RTD/ Volt / Tc | > 20 MΩ |
| mA | 50Ω Shunt External |
| CMRR | >100 dB@ 50, 60 Hz at 3 Sample per Second |
| NMRR | >50 dB@ 50, 60 Hz at 3 Samples per Second |
| Maximum Common Mode Voltage | 5V AC |
| Isolation Channel – EARTH | 1.5KV 1 minute |
| Input Protection | 30V AC/DC Max |
| Termination | Non Interchangeable, Removable Plugs, Individual for Each Input |
| Transmitter Power Supply | Non Isolated 15VDC /24VDC; 30Ma max, un protected |
| Environmental: | |
| Temperature | (Operation)5˚C to 45˚C / (Limiting) 0˚C to 50˚C |
| (Storage)-20˚C to 60˚C | |
| Humidity | (Operation) 10 to 80 % RH Non Condensing |
| (Storage) 5 to 90 % RH Non Condensing | |
| Altitude | <2000 meter |
| Power Requirement: | |
| Supply Voltage (Mains Operated) | 85-264VAC 47-63Hz |
| Battery backup | Yes |
| DC Adapter Operated | Yes |
| Power | 15 W Max with Maximum Configuration |
| Fuse Type | None |
| Battery Backup*: | |
| Battery | 12V 7Ah External Lead Acid battery |
| Battery Charger | Yes |
| Battery Reverse Polarity | Protected |
| Minimum Back up | >12 Hrs. |
| Relay Output*: | |
| Max | 4 |
| Output Type | Potential Free Contact, 1 From C |
| Configuration | High/Low/High-Low/On-Off(Hysteresis band settable) |
| Life expectancy | Mechanical:107 Operations Electrical :105 Operations |
| Load | 1A ,230V AC resistive |
| Relay Refresh Rate | 1 Sec. |
| Isolation Relay-Relay | 2.5KV 1Minute |
| Isolation Relay Contact – GND | 1.5KV 1Minute |
| Safety: | |
| EMI-EMC | IEC 61326-1 Class A |
| Safety | IEC 61010-1 |
| Pollution Degree | II |
| Installation Category | III |
| Vibration | 2g Peak (10Hz – 150Hz) |
| Shock | IEC61010-1 |
| IP Rating | IP30(Door and Bezel Only) |
| Overall Dimension | |
| Dimension L x W x D (mm) | 232X205X117 |
| Panel Cutout (mm) (L x W) | 200X170 |
| Bezel (mm) | 232X205 |
Table 1 Sensor Type, Range, Accuracy, And Resolution
| Input Type | Valid Input | Resolution | Accuracy | Display Range |
| PT-100(RTD) | -200 to 850 °C |
0.1 |
±0.5%FSD±1 Digit |
–
-2000.0 to 2000.0 |
| mA | 4-20mA/0-20mA | |||
| mV | -1000.0 to +1000.0 | |||
| TC-J(Fe-CuCn) | 0 to 400°C | |||
| TC-K (NiCr-NiAl) | 0 to 1200°C | |||
| TC-R(Pt13Rh-Pt) | 0 to 1750°C | |||
| TC-S(Pt10Rh-Pt) | 0 to 1750°C | |||
| TC-T(CU-CuCn) | -100 to +400°C |
Table 2 Standard Available Chart Ranges
| Sr. No. | Range** | Speed | Size | Part No. | Part Description |
| 21 | 0 to +100 | 24H | 6” | 304001 | D60100 |
| 22 | 0 to +150 | 24H | 6” | 304002 | D60150 |
| 23 | 0 to +200 | 24H | 6” | 304005 | D60200 |
| 24 | 0 to +300 | 24H | 6” | 304008 | D60300 |
| 25 | -50 to +50 | 24H | 6” | 304016 | D6-50+50 |
| 26 | 0 to +160 & -1 to 3 | 24H | 6” | 304004 | D60160&-1+3 |
| 27 | +90 to +140 | 4H | 6” | 305001 | 4H90140 |
| 28 | 0 to +100 | 7 Day | 6” | 307001 | W60100 |
| 29 | -50 to +50 | 7 Day | 6” | 307010 | W6-50+50 |
| 30 | +50 to -50 | 7 Day | 6” | 307009 | W650-50 |
| 31 | -100 to +50 | 7 Day | 6” | 307005 | W6-100+50 |
| 32 | +50 to -100 | 7 Day | 6” | 307008 | W650-100 |
| 33 | +40 to -10 | 7 Day | 6” | 307007 | W640-10 |
| 34 | 0 to +50 | 7 Day | 6” | 307004 | W6050 |
| 35
| 0 to +10 | 7 Day | 6” | 307012 | W6010 |
| 40 | Other Please Specify | ||||
** First value in the chart is at the center of the Chart.
Specification listed are for each of the modules that can be fitted. Refer to the order code for the exact modules fitted in your system. Specifications for the modules that are not fitted, will not be applicable.
Accessories
1.Charts: 100Nos. (As Per Your Given Range from Order Code)
| Sr. No. | Circular Chart | Part Number | Part Description | ||
| Range** | Speed | Size | |||
| 21 | 0 to +100 | 24hrs/rev | 6″ | 304001 | D60100 |
| 22 | 0 to +150 | 24hrs/rev | 6” | 304002 | D60150 |
| 23 | 0 to +200 | 24hrs/rev | 6” | 304005 | D60200 |
| 24 | 0 to +300 | 24hrs/rev | 6″ | 304008 | D60300 |
| 25 | -50 to +50 | 24hrs/rev | 6″ | 304016 | D6-50+50 |
| 26 | 0 to +160 /-1 to +3 | 24hrs/rev | 6″ | 304004 | D60160/-1+3 Dual range |
| 27 | +90 to +140 | 4hrs/rev | 6″ | 305001 | 4H690140 |
| 28 | 0 to 100 | 7days/rev | 6″ | 307001 | W60100 |
| 29 | -50 to +50 | 7days/rev | 6″ | 307010 | W6-50+50 |
| 30 | +50 to -50 | 7days/rev | 6″ | 307009 | W650-50 |
| 31 | -100 to +50 | 7days/rev | 6″ | 307005 | W6-100+50 |
| 32 | +50 to -100 | 7days/rev | 6″ | 307008 | W650-100 |
| 33 | +40 to -10 | 7days/rev | 6″ | 307007 | W640-10 |
| 34 | 0 to +50 | 7days/rev | 6″ | 307004 | W6050 |
| 35 | 0 to +10 | 7days/rev | 6″ | 307012 | W6010 |
| 50 | Other please specify | ||||
| 24hrs/rev |
2. Panel Mounting Clamps: 2 Nos.:- Part No.-210034
3) Pen: 5 Nos.
Pen 1 – Red; Part No. – 217006

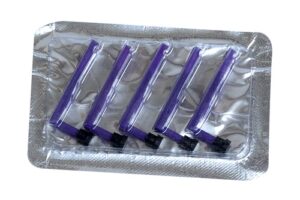

Pen 2 – Violet; Part No. – 217005
Optional Accessories:

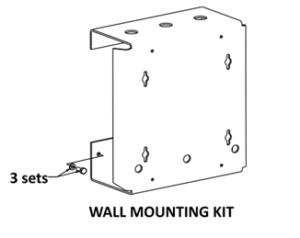

1) Wall Mounting Kit: Part No.: 225010
