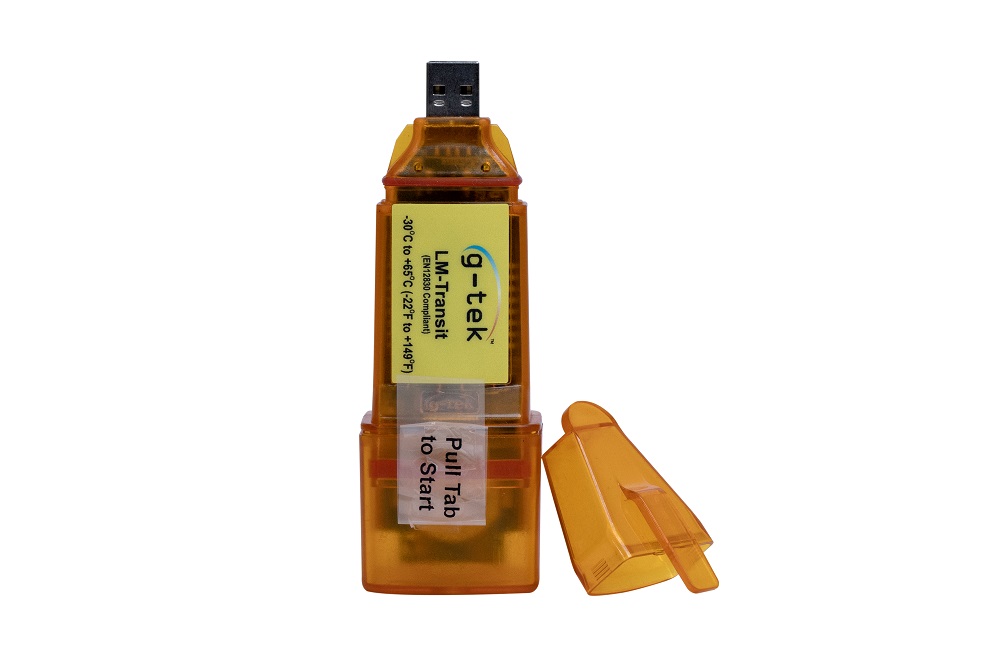

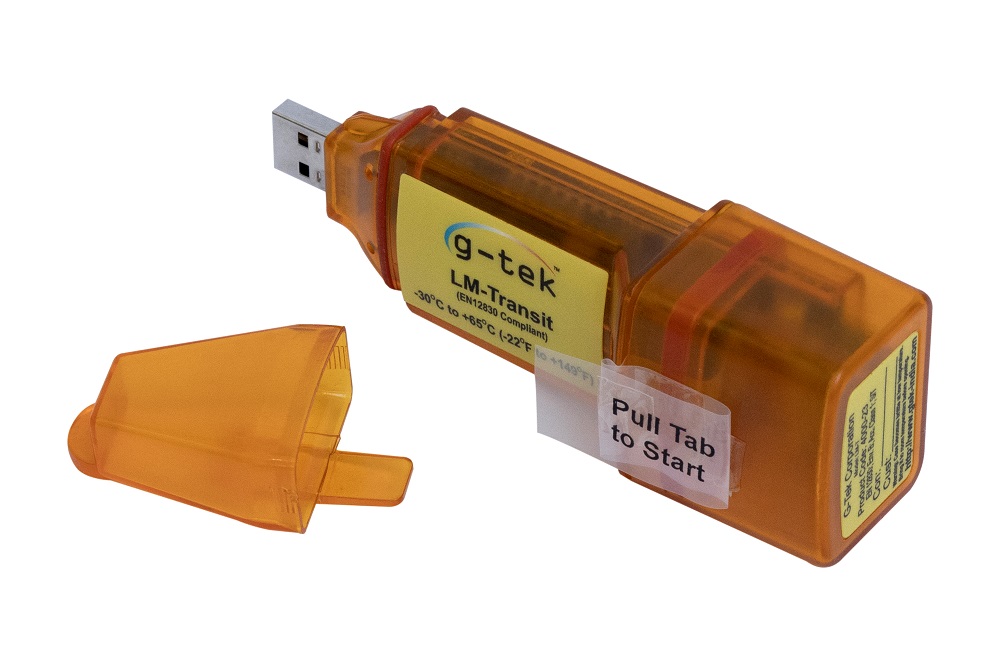

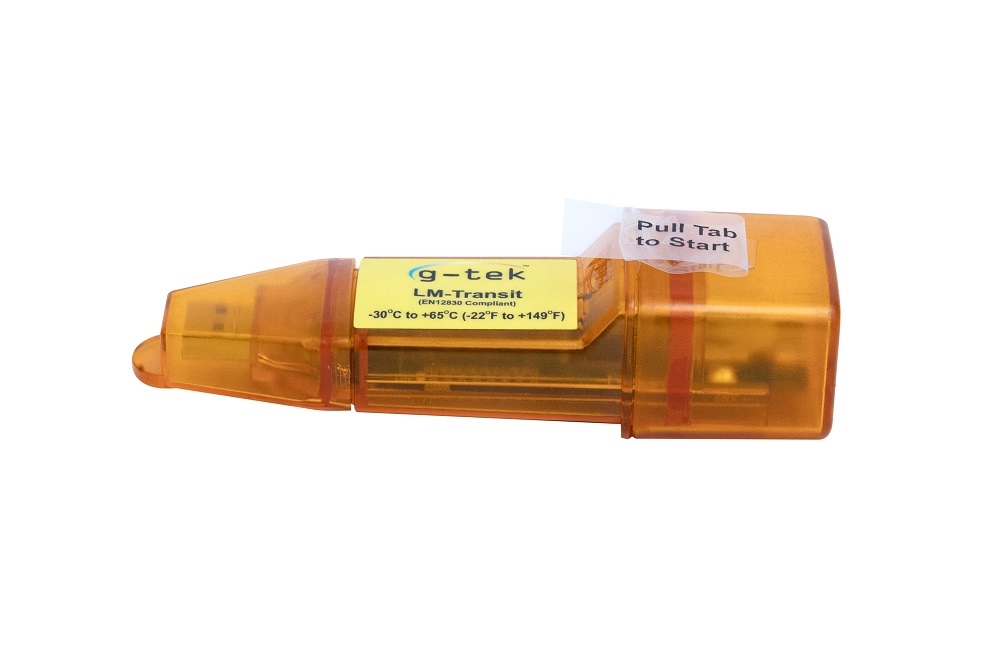

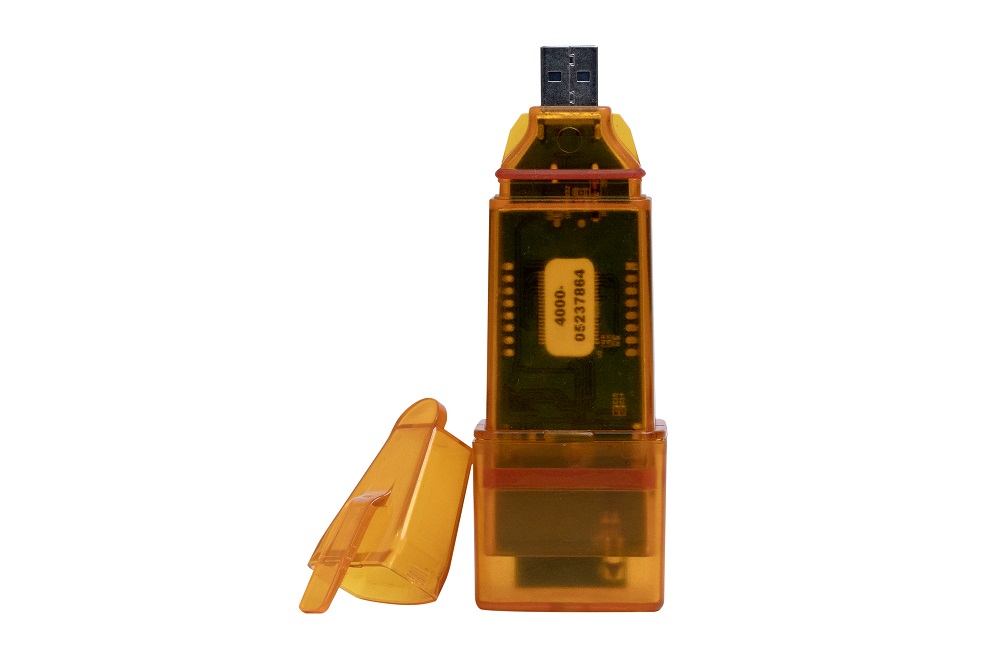

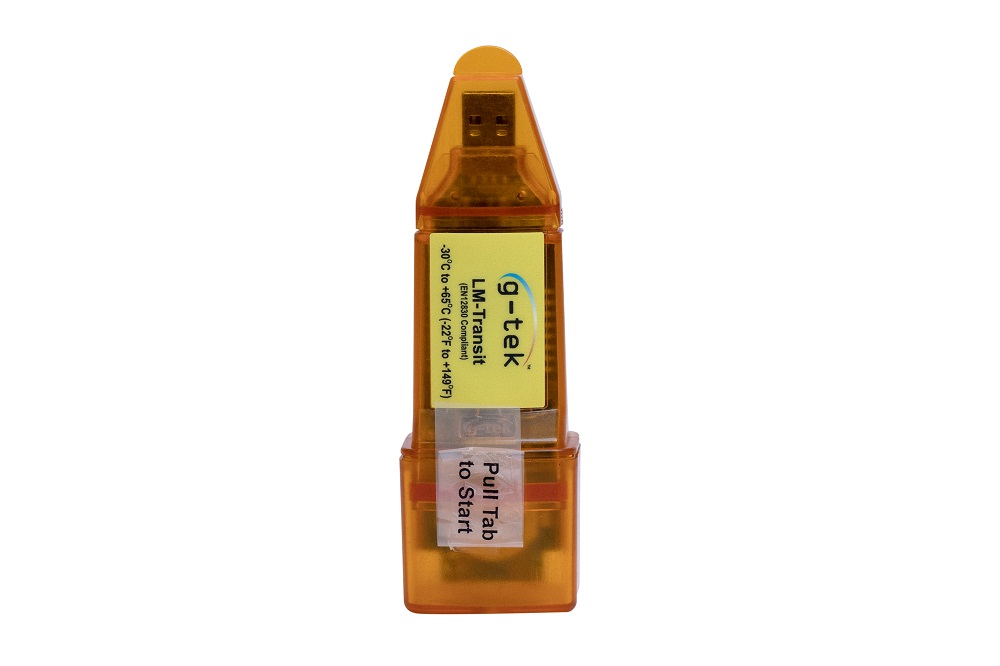

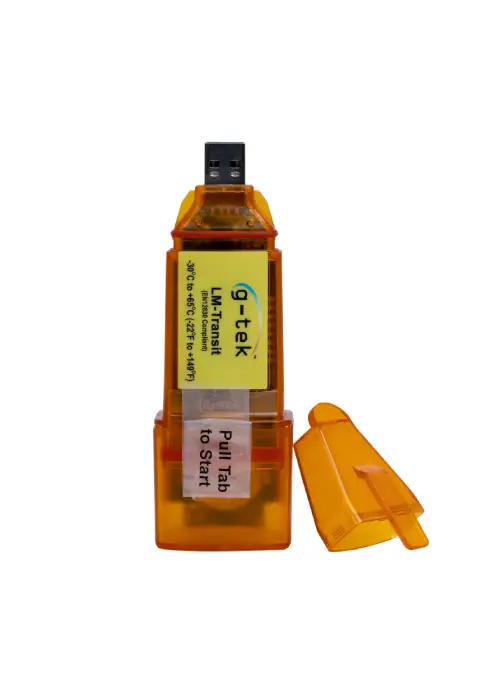

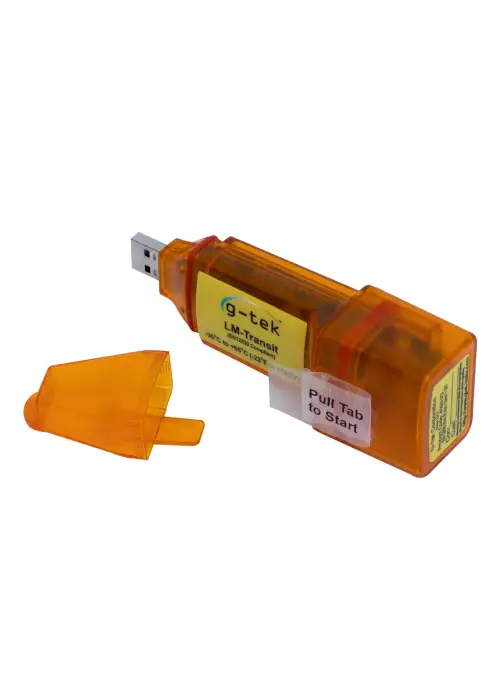

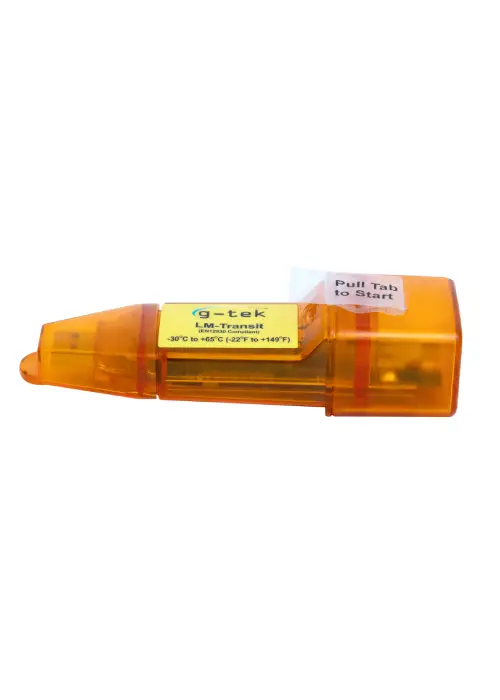

Data Logger – LM-Transit
Little Master Transit (LM Transit) series are one-time use portable temperature data loggers. Ideal for recording temperature during shipping and transport, LM Transit series are easy to use, accurate and affordable solutions for your requirements. Waterproof (IP65) ensures that you can place them in the most demanding of environments. EN 12830 compliance assures you the quality and the reliability. The bright fluorescent like color makes it easy to identify at destination for easy retrieval.
Features
- Easy to Use
- Indication for start of logging
- Cost Effective, single use data logger
- Memory available in set of 4000/8000/16000/32000 data records.
- Storage resolution 0.01
- EN12830 Compliant
- Direct Connection to PC’s USB port
Specification
- Easy to Use
- Indication for start of logging
- Cost Effective, single use data logger
- Memory available in set of 4000/8000/16000/32000 data records.
- Storage resolution 0.01
- EN12830 Compliant
- Direct Connection to PC’s USB port
Specifications:Specifications are subject to change without notice
| Model | LM – T |
| Series | 4000-xx |
| Display and Operator Panels | |
| Display Type | None |
| Status Indicator | Red LED for Device working. Red LED for Batch Start / Stop |
| Panel Keys | None |
| Memory | |
| Data Storage | Yes |
| Memory | 4000/8000/16000/32000 Data Records |
| Memory Type | Flash, Non-volatile, Data Retention up to 100 years |
| Analog Input Details | |
| No. Of Channels | 1 (Temperature Input) |
| Temperature Measurement Accuracy | ± 0.1% FSR |
| Sensor Details | |
| Temperature | 10K Thermistor; NTC; Internal to the device |
| Temperature Range | -30 to + 60 °C (-22 to +140 °F) |
| Sensor Response Time | 30 min for step change of 50 Deg C |
| Sensor Accuracy | ± 0.5 °C (± 0.9 °F) |
| Sensor Resolution | 0.01 |
| Batch Details | |
| Start/Stop | Immediate on pulling TAB |
| Batch Stop | When Memory is full |
| Delayed Start | No |
| Logging Interval | Refer to order code |
| Download Batch | Intermediate after any time the batch started/After the Batch is completed |
| Environmental | |
| Temperature | (Operation)-30˚C to 60˚C |
| (Limiting) -35˚Cto 70˚C | |
| (Storage) -35˚Cto 70˚C | |
| Humidity | (Operation)0 to 100% RH |
| Power Requirement | |
| Supply Voltage (Battery Operated) | 3.0 V 240mAH; CR2032 Panasonic Coin Cell Battery; User Replaceable |
| Battery Life | >1 Year, at 25˚C and 15min Store Interval |
| Battery Reverse Polarity | Protected |
| General | |
| User Calibration Feature | Factory Calibrated |
| Reusability | None. One time use, Disposable |
| Online Feature | Power saver mode when USB connected, Online Batch with Current Data Display using LmView software on PC |
| Confirmatory Standards | |
| Product | EN 12830 |
| EMI-EMC | EN 61326 Class A |
| Pollution Degree | II |
| Installation Category | IV |
| Vibration | 2g Peak (10Hz-150Hz) |
| Shock | IEC 61010-1 |
| IP Rating | IP65 |
| Communication | |
| Connectivity | USB 2.0, USB 3.0 Compatible |
| Data Download Time | approx 3 sec for 32000 data records |
| Overall Dimension | |
| Dimension | 120 (L) x 40 (W) x 25 (H) |
| Mounting | From the Clip provided on the cap |
Accessories

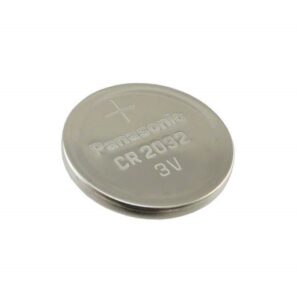

1) 3.0 V 240mAH; CR2032 Panasonic Coin Cell Battery
Part No.: 119007
