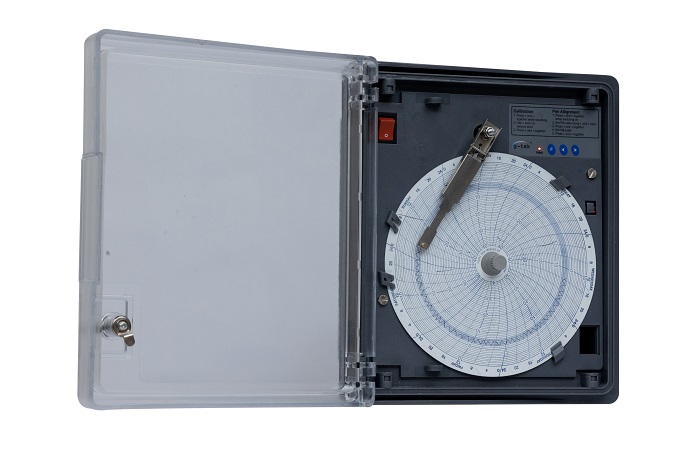

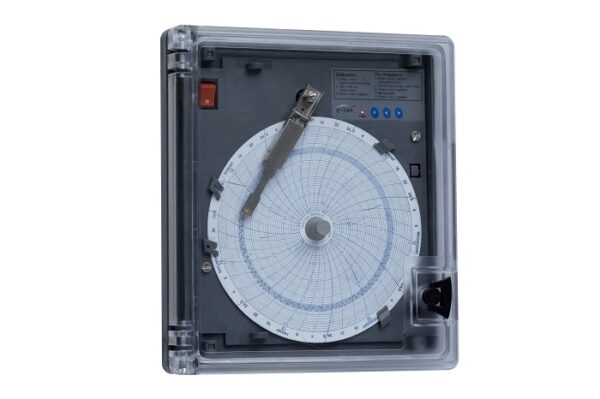

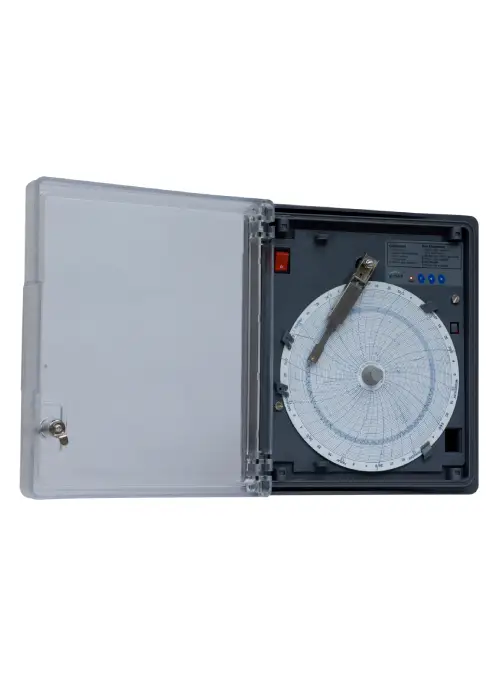

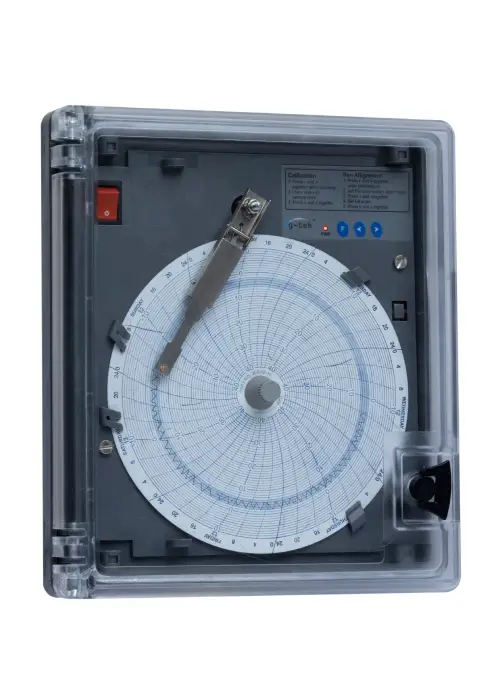

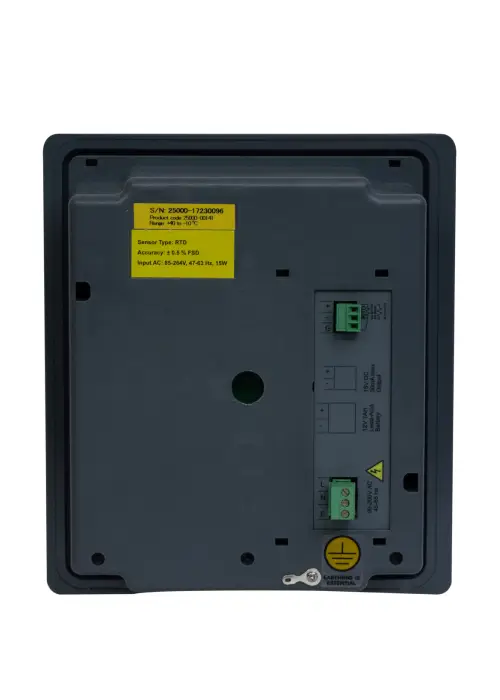

Inkless Recorder – CR6″
Inkless chart recorders from G-Tek are available in 4” and 6” chart size formats. Part of G-Tek’s most popular series CR2010, they offer utmost reliability and versatility at an affordable price.
Since the marking on the chart is through the pressurized needle, there is no need to worry about the ink being exhausted or replacing the pen. Pressure-sensitive papers are used instead of thermal papers to ensure that the marking is retained for a longer period of time.
These 6” recorders are widely used in low-temperature equipment, blood banks, incubators, and many more places. They come for RTD Pt-100 inputs, 4-20mA/ 0-1v process inputs. Standard chart speeds are 4Hr / 24Hr and 168Hr (7Day) per revolution.
These recorders are microcontroller-based. Crystal-controlled chart drive ensures good chart speed accuracy. Stepper motors for both pen and chart drive ensure no lag and no backlash. A transparent polycarbonate door makes the chart visible from distance. They come with a universal power supply as a standard feature. Other power supply inputs are also available.
Features
- 6” Chart Width
- Inkless Chart Recorder
- Pressure Sensitive paper for long retention of data
- Without Display
- Single Analog Input channel
- Universal Power Supply 85-264 V AC, 47-63 Hz
- Other power supply inputs on request
- Battery Back up

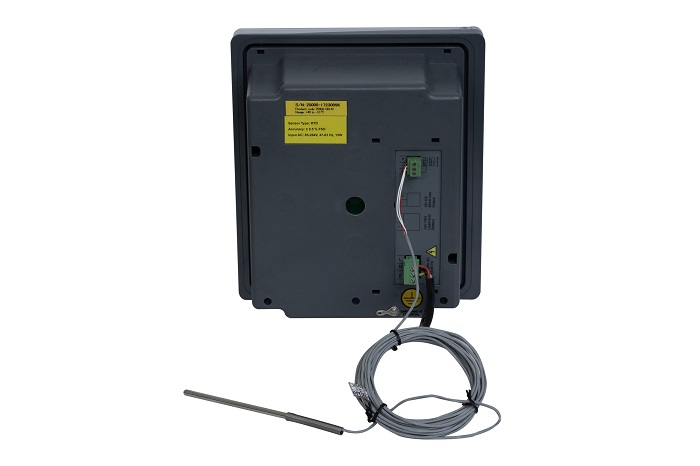

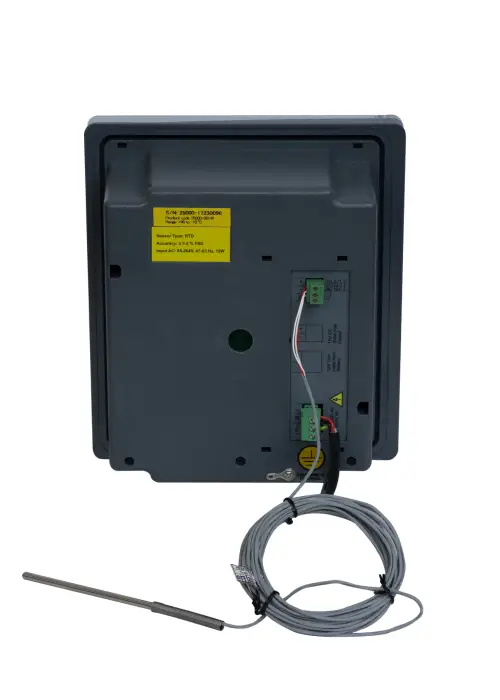

- Direct Input standard PT-100 sensor
- Process Input through 4-20mA or 0-20mA or 0-1V DC
- 7Days/Rev Chart Speed
- Other Chart Speed available on request
Specification
- 6” Chart Width
- Inkless Chart Recorder
- Pressure Sensitive paper for long retention of data
- Without Display
- Single Analog Input channel
- Universal Power Supply 85-264 V AC, 47-63 Hz
- Other power supply inputs on request
- Battery Back up
- Direct Input standard PT-100 sensor
- Process Input through 4-20mA or 0-20mA or 0-1V DC
- 7Days/Rev Chart Speed
- Other Chart Speed available on request
| Product Code* | 25×00 |
| Recording System | |
| Pens | |
| No. of Pens | 1, Pressurized Needle |
| Pen Marking | Continuous |
| Pen Response Time | <5Sec (Full Scale) |
| Pen Resolution | Stepper Motor Controlled better than 0.1% FSD |
| Overshoot | None |
| Chart | |
| Chart Speed | 7 days/rev; 24Hr/Rev and 4H/Rev |
| Chart Calibrated Radius | 2.3″ (approx. 59mm) |
| Chart Ranges | Standard (Refer Table 2) / Customized Please specify |
| Display, Operator Panels and Input | |
| Display Type | None |
| Status Indicator | LED |
| Panel Keys | Front panel KB consisting of 2 keys for programming and calibration |
| Analog Input | RTD PT-100 / 0-1 V / 4-20 mA / 0-20 mA (External shunt resistance of 50 Ohm 0.1%) |
| Sensor Type and Range | Refer to Table 1 |
| Scan Rate | Continuous 1 reading per second |
| Protection | |
| Input Impedance | RTD / Volt> 20 MΩ |
| mA 50/2.7Ω Shunt External | |
| CMRR | >100 dB@ 50, 60 Hz at 3 Sample per Second |
| NMRR | >50 dB@ 50, 60 Hz at 3 Samples per Second |
| Maximum Common Mode Voltage | 5V AC |
| Isolation Channel – EARTH | 1.5KV 1 minute |
| Isolation Channel – Channel | NA |
| Input Protection | 30V AC/DC max |
| Termination | Non interchangeable, Removable Plugs |
| Transmitter Power Supply | Non Isolated 15V DC; 30mA max, un protected |
| Environmental | |
| Temperature | (Operation)5°C to 45°C |
| (Limiting) 0°C to 50°C | |
| (Storage)-20°C to 60°C | |
| Humidity | (Operation) 10 to 80 % RH Non Condensing |
| (Storage) 5 to 90 % RH Non Condensing | |
| Altitude | <2000 meter |
| Power Requirement | |
| Supply Voltage (Mains Operated) | 85-264VAC 47-63Hz |
| Battery backup | Yes |
| DC Adapter Operated | Yes |
| Power | 7W Max With Maximum Configuration |
| Fuse Type | None |
| Battery Backup | |
| Battery | 12V 7Ah External Lead Acid battery |
| Battery Charger | Yes |
| Battery Reverse Polarity | Protected |
| Minimum Back up | 24Hrs. |
| Safety | |
| Safety | IEC 61010-1 |
| EMI-EMC | EN 61326-1 Class A |
| Pollution Degree | II |
| Installation Category | IV |
| Vibration | 2g Peak (10 Hz-150Hz) |
| Shock | IEC61010-1 |
| IP Rating | IP50 (Door and Bezel only) |
| Overall Dimension | |
| Dimension L x W x D (mm) | 232x205x117 |
| Panel Cutout (mm) (L x W) | 200×170 |
| Bezel (mm) | 232×205 |
| Input Type | Valid Input Range | Resolution Chart | Accuracy | Linearization Error(Max) |
| PT-100(RTD) | -100 to +600˚C | 2% | +/- 0.5% FSD | ±0.7˚C Max |
| mA | 4-20 mA | 2% | +/- 0.5% FSD | ± 0.1% Max |
| mA | 0-20 mA | 2% | +/- 0.5% FSD | ± 0.1% Max |
| Volt | 0-1 Volt | 2% | +/- 0.5% FSD | ± 0.1% Max |
| Sr. No. | Range** | Speed | Size | Part No. | Part Description |
| 36 | +20 to -10 PS | 7D | 6″ | 308009 | W620-10PS |
| 37 | +50 to -100 PS | 7D | 6″ | 308010 | W650-100PS |
| 39 | +40 to -10 PS | 7D | 6″ | 308008 | W640-10PS |
| 40 | -50 to +50 PS | 7D | 6″ | 200595 | W6-50+50PS |
| 50 | Other Please Specify |
** First value in the chart is at the center of the Chart.
#PS:Pressure sensetive chart paper
Specification listed are for each of the modules that can be fitted. Refer to the order code for the exact modules fitted in your system. Specifications for the modules that are not fitted, will not be applicable. Specifications are subject to change without notice
1. Chart Pack of 100
Standard Available Chart Ranges and Their Part No.:
| Sr. No. | Range** | Speed | Size | Part No. | Part Description |
| 36 | +20 to -10 PS | 7days/rev | 6” | 308009 | W6+20-10PS |
| 37 | +50 to -100 PS | 7days/rev | 6” | 308004 | W6+50-100PS |
| 39 | +40 to -10 PS | 7days/rev | 6” | 308003 | W6+40-10PS |
| 40 | -50 to +50 PS | 7days/rev | 6” | 210042 | W6-50+50PS |
| 50 | Other Please Specify |
** First value in the chart is at the center of the Chart.
# PS: Pressure Sensitive Chart for inkless recorders
2. Panel Mount Clamps: (Available in Pair only)
Part No.: 210034

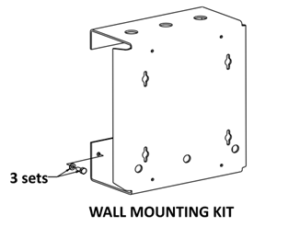

3. Wall Mounting Kit : Part No.- 225010
