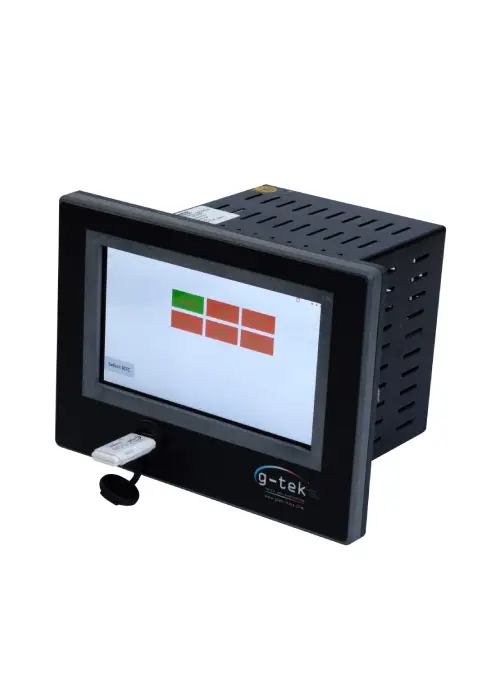

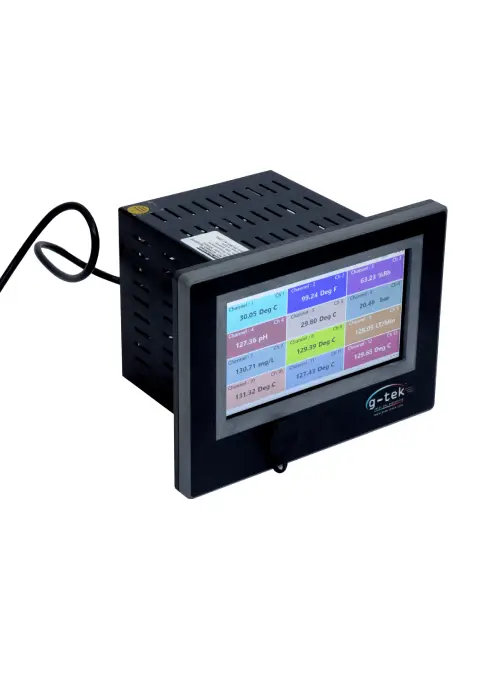

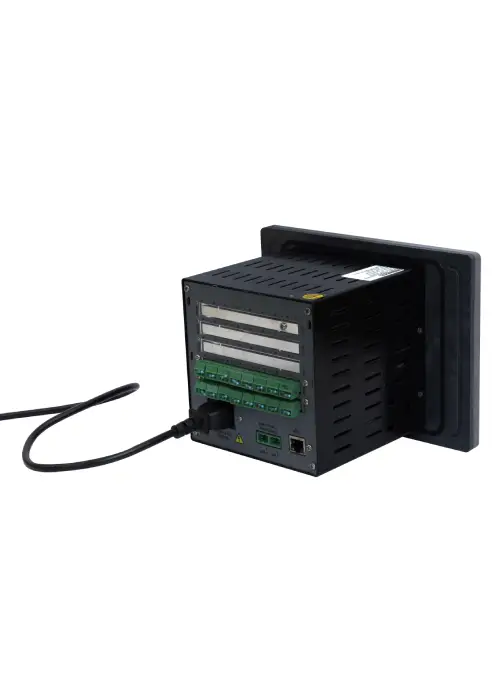

Paperless Recorder

G-Tek’s SmartScreenTM series of the paperless recorder are versatile, easy to use and compact for all your process-recording requirement. These series of the recorder employs latest high-resolution widescreen displays. With SmartPhone like look and feel features that makes it very easy to operate.

If you want to record your process, or you want to take the data to a remote computer or you want to monitor your data from anywhere in the world, SmartScreenTM is the solution for you. With 21CFR Part II compliance, rest assured about your data security.  With connectivity to gtekNetTM – a client-server application, you can connect as many SmartScreen recorders as you want to a central server.

Now with the screens and menus in Hindi / Gujarati along with other hosts of the languages, makes it easy for everyone to operate in their native language.

Category:

Features

  • Isolated Analog Inputs
  • State of the art Analog Front end with 24 bit ADC
  • 70mSec for sample rate
  • 7” Wide Screen Display with 800×480 resolution
  • 10 finger capacitive touch for fast responsiveness
  • Large 16GB SD card memory, expandable to 32GB

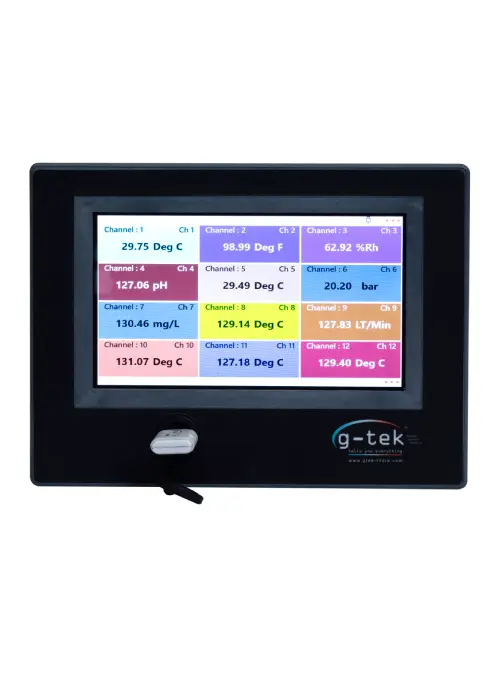

  • Digital View

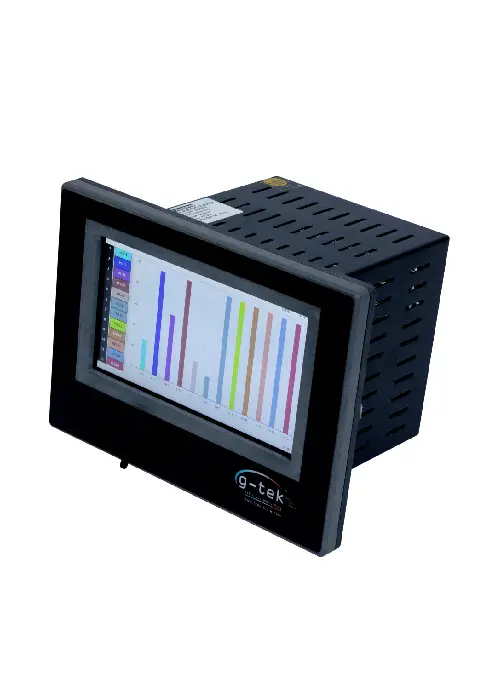

  • Bar Chart
  • Strip Chart

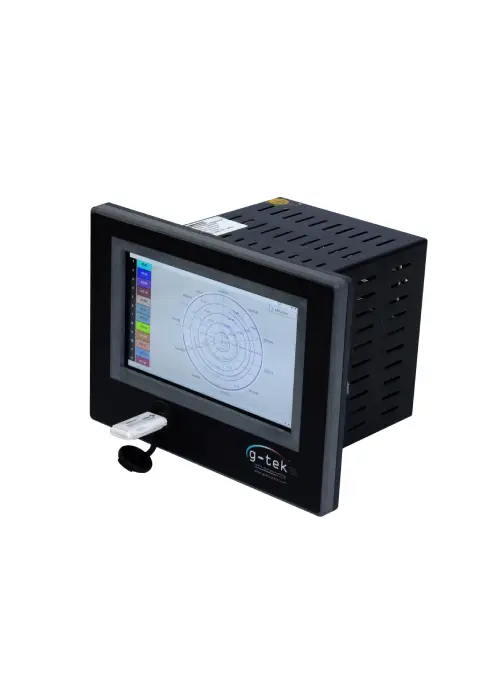

  • Circular Chart
  • TCP/IP Connectivity
  • Voltage / Current output
  • Relay Output – High / Low / On-Off / PID
  • 21CFR Part 11 Compliance
  • Multiple Language including Hindi and Gujarati

Specification

  • Isolated Analog Inputs
  • State of the art Analog Front end with 24 bit ADC
  • 70mSec for sample rate
  • 7” Wide Screen Display with 800×480 resolution
  • 10 finger capacitive touch for fast responsiveness
  • Large 16GB SD card memory, expandable to 32GB
  • Digital View
  • Bar Chart
  • Strip Chart
  • Circular Chart
  • TCP/IP Connectivity
  • Voltage / Current output
  • Relay Output – High / Low / On-Off / PID
  • 21CFR Part 11 Compliance
  • Multiple Language including Hindi and Gujarati
  Model No : PL600 Series; 7″ recorder
Product Code* 6xxxxxx-x
Recording System
Display and Operator Panels
Display Type TFT color LCD
Display Size 7”
Viewable Screen 155mm x 86mm
Display Resolution 800×480 Pixels
Color Resolution 24bits
Touch Screen 10 finger Capacitive
Display Screens Digital View / Bar Chart / Horizontal trend / Vertical Trend/ Circular Chart / Menus and other user interface screens
Multilingual Supports Indian languages like Hindi and Gujarati; Other language support can be extended on request
General Specifications
CPU 1.2GHz 64-bit quad-core ARMv8 CPU
Internal Data Storage SD Card – 16 GB; Expandable to 32GB
USB Host 1; In Front
Data Update Rate 2 Hz
Data Store Interval 1 Seconds to 18 Hours
21CFR Part 11 Compliance Optional
Maximum No of Slots per recorder 5
Communication
Communication Port 10/100 Base T (IEEE 802.3) Ethernet Port
Connector RJ45
Protocols Supported MODBUS TCPIP Slave; HTTPS; FTP
Communication Activity LED Yes
Isolation 1.5KV 1Minute; (As per IEC 61010-1)
Environmental
Temperature (Operation)5°C to 45°C
(Limiting) 0°C to 50°C
(Storage)-20°C to 60°C
Humidity (Operation) 10 to 80 % RH Non Condensing
(Storage) 5 to 90 % RH Non Condensing
Altitude <2000 meter
Safety / EMI-EMC
EMI-EMC IEC 61326-1 Class B
Safety IEC 61010-1
Pollution Degree II
Installation Category IV
Vibration 2g Peak (10Hz-150Hz)
Shock IEC61010-1
IP Rating IP 65 (Only front Bezel)
Power Requirement
Supply Voltage (Mains Operated) 85-264VAC 47-63Hz
Power 35W Max with Maximum Configuration
Fuse Type None
Overall Dimension
Dimension L x W x D (mm) 221x164x155
Panel Cutout (mm) (L x W) 138×138
Bezel (mm) 221×164
Analog Input Board
No of Inputs per Board 4
No of Slots Consumed per Board 1
Sensor Input Type; Range and Accuracy Refer to Table 1
Linearization For RTD; Thermocouples; Square Root; 3/2 Power; 5/2 Power; Log10
Linearization Error ± 0.3 ° Max
Resolution User Settable up to 0.0001
CJC Accuracy ± 0.5 °C
Sensor Open / Short / Out of Range Yes
Samples per Second Max 26 Samples per Second all Channels
Input Impedance RTD / TC /Volt >20 MΩ
Input Shunt for 4-20mA and 0-20mA 50 Ohm ±0.1% 1/4W External
CMRR >120 dB @ 50, 60 Hz @ 13 Samples per Second
NMRR >60dB @ 50,60 Hz at 13 Samples per Second
Maximum Common Mode Voltage 30V DC
Isolation Channel – Channel 2.5KVrms 1minute (IEC 61010-1)
Isolation Channel – Earth 2.5KVrms 1minute (IEC 61010-1)
Input Protection 60V AC/DC Max
Analog Output Board
No of Inputs per Board IEC 61010-1
No of Slots Consumed per Board 1
Output Type User Settable mA / Volt
Accuracy ± 0.1% FSR
Temperature Drift ± 0.01% FSR/°C @ 25 °C
Resolution 16Bits
Step Response 250mSec (10-90%)
Output Refresh Rate 500mSec
Self-Diagnostics Fault Indication for each output
Isolation Channel – Channel 2.5KVrms 1minute (IEC 61010-1)
Isolation Channel – Earth 2.5KVrms 1minute (IEC 61010-1)
mA
Range 0-20mA; 4-20mA
Open Circuit Indicator Yes
Maximum load resistance 600Ω
Maximum load Inductive 50mH
Maximum Current Output 24mA
Short Circuit Protection Yes
Voltage
Range 0-5V; 0-10V; ±5V; ±10V DC
Output Impedance 1KΩ Maximum
Maximum Capacitive Load 1µF
Maximum Load 10mA
Sort Circuit Protected
Relay Output Board
No of Inputs per Board 4
No of Slots Consumed per Board 2
Relay Output Type High / Low / On-Off / PID
Output Type 1 Form C (C-NC-NO)
Life Expectancy Mechanical: 107 operations                                                                                                                                                                                         Electrical 105 operations
Relay Contact Ratings 1A; 230V AC Resistive
Relay Refresh Rate 500mSec
Isolation Relay – Relay 2.5KVrms 1minute (IEC 61010-1)
Isolation Relay – Earth 1.5KVrms 1minute (IEC 61010-1)
Transmitter Output Power
Maximum no of output 2
Output Voltage 24V DC
Max Current 30mA
Short Circuit Protected
Isolation Output – Earth 1.5KVrms 1minute (IEC 61010-1)
Table:1 Accuracy and Range Table for Varioue Sensor inputs
Sensor Accuracy at 25 ˚C
Sensor Type Standard Range Error Error% Input Error% Range Error Temperature Coefficient ppm/°C
RTD Type
PT-100(RTD) IEC751 -200 To +850 0.01˚C 0.04% 0.04% 30ppm
T/C Type
B IEC584.1 +200 To +1800 0.03˚C 0.05% 0.06% 25ppm
C Hoskins 0 To +2300 0.12 ˚C 0.05% 0.06% 25ppm
E IEC584.1 -100 To +1000 0.03˚C 0.05% 0.06% 25ppm
J IEC584.1 -200 TO +1200 0.02˚C 0.05% 0.06% 25ppm
K IEC584.1 -200 To +1372 0.04˚C 0.05% 0.06% 25ppm
N IEC584.1 -200 To +1300 0.04˚C 0.05% 0.06% 25ppm
R IEC584.1 0 To +1750 0.04˚C 0.05% 0.06% 25ppm
S IEC584.1 100 To +1750 0.04˚C 0.05% 0.06% 25ppm
T IEC584.1 -100 To +400 0.02˚C 0.05% 0.06% 25ppm
mV
0 To +1 Volt ±9999 0.03% 0.03% 25ppm
-1 To +1 Volt ±9999 0.03% 0.03% 25ppm
0 To +5 Volt ±9999 0.03% 0.03% 25ppm
-5 To +5 Volt ±9999 0.03% 0.03% 25ppm
0 To +10 Volt ±9999 0.03% 0.03% 25ppm
-10 To +10 Volt ±9999 0.03% 0.03% 25ppm
mA
4-20mA ±9999 0.03% 0.03% 25ppm
0-20mA ±9999 0.03% 0.03% 25ppm

Specification listed are for each of the modules that can be fitted. Refer to the order code for the exact modules fitted in your system. Specifications for the modules that are not fitted, will not be applicable Specifications are subject to change without notice.

±9999
±9999



0.03%



0.03%

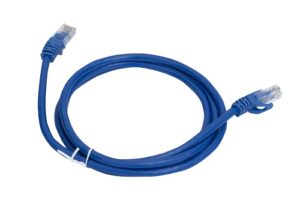

1. Ethernet Cable

    Part No.: 236249



2.  Panel Mount Clamps: (Available in Pair only)

     Part No.: 210046
