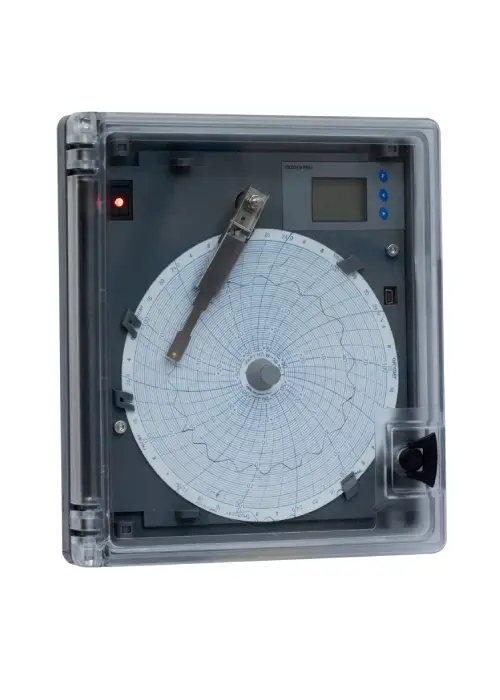

Storage Recorder – Datalogging-CR6

The most popular 6” circular chart recorder of CR2010 series, is also available with an internal memory of 64KB to store data up to 14 days at 5minute store interval. This recorder is specifically tailored to monitor the blood bank refrigerator temperature data.

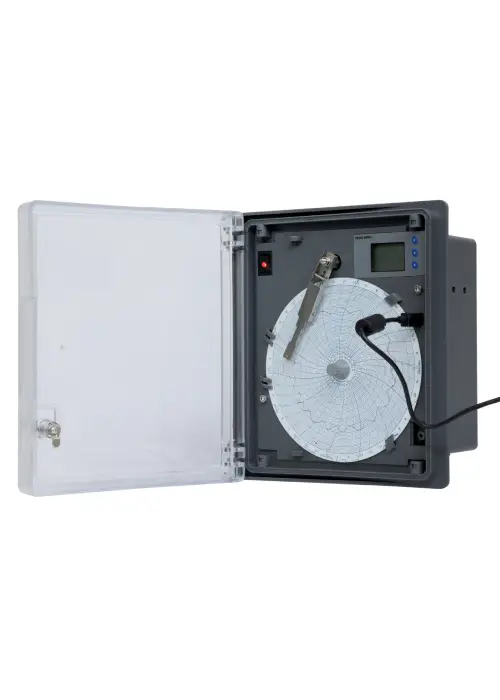

This recorder also has an input for Door Open switch. Since door opening and closing is very frequent during the removal of the stored blood, it is very easy to monitor how often and for how much time the door was left open with this recorder.

This recorder uses pressure sensitive chart paper so there is no need to replace the pen. The smudging of the ink is also not there, besides since the paper used is pressure sensitive instead of thermal, the life of the recording is very high. Mains failure and return is also logged.

The recorder comes with a built-in battery back up to ensure the proper working in case of power failure. Most other features are similar to the standard CR2010 6” recorder.

Category:

Features

  • 6” Chart Width
  • Inkless chart recorder
  • LCD Display
  • Real Time Clock
  • Data Storage 64KB of memory
  • Event Logging like Power Fail / Door Open / Power Restore
  • storage of 14 days of data at 5min store interval
  • Serial Printer Interface
  • RS-232C serial port to communicate with PC
  • BBR-Chart Application to download data
  • Generate Reports from BBR-Chart
  • Single Analog Input channel
  • Direct Input standard PT-100 sensor
  • Chart Speed of 7D/Rev
  • Universal Power Supply 85-264 V AC, 47-63 Hz
  • Battery Back up

Specification

  • 6” Chart Width
  • Inkless chart recorder
  • LCD Display
  • Real Time Clock
  • Data Storage 64KB of memory
  • Event Logging like Power Fail / Door Open / Power Restore
  • storage of 14 days of data at 5min store interval
  • Serial Printer Interface
  • RS-232C serial port to communicate with PC
  • BBR-Chart Application to download data
  • Generate Reports from BBR-Chart
  • Single Analog Input channel
  • Direct Input standard PT-100 sensor
  • Chart Speed of 7D/Rev
  • Universal Power Supply 85-264 V AC, 47-63 Hz
  • Battery Back up
Model No: CR2010 Series; BBR Chart Recorder
Product Code* 27×01
Recording System
Pens
No. of Pens 1 – Suitable for marking on Pressure Sensitive Paper
Pen Marking Continuous
Pen Response Time <5Sec (Full Scale)
Pen Resolution Stepper Motor Controlled better than 0.1% FSD
Overshoot None
Chart
Chart Speed 7 days/rev;
Chart Calibrated Radius 2.3″ (approx. 59mm)
Chart Ranges Standard (Refer Table 2) / Customized Please specify
Display, Operator Panels and Input
Display Type 2½digit LCD
Status Indicator RTC; Dump to Printer
Panel Keys Front panel KB consisting of 3 keys for programming and calibration
Analog Input RTD PT-100
Sensor Type and Range Refer to Table 1
Scan Rate Continuous 1 reading per second
Memory
Memory Size 64KB
Data Storage Upto 14 days at 5min Store Interval
Alarm Records Yes (Going out of limit and coming back to limit is considered as one alarm record)
Record for Door Open / Close Yes
Mains Failure Record Yes
Memory Type Cyclical – Most recent data is always available
User Settable Parameters for Recording
Alarm Condition Occurrence Time Delay 0 to 99 mins; user settable (through PC)

When the temperature remains out of limit for more than set time then only the alarm condition is assumed.

Real Time Clock (RTC)  Settable from PC and from Key-Board in DD/MM/YY/HR/MN/SC format
Door Open/Close Input through Potential Free contact.
Communication
Serial PORT RS232-C
Printer PORT  Serial Interface; Can dump the stored data with alarm, power failure and Door Open/Close logs with date and time stamp.
PC Application BBR-Chart TM to download data; Configure recorder and generate report
Protection
Input Impedance > 20 MΩ
CMRR >100 dB@ 50, 60 Hz at 3 Sample per Second
NMRR >50 dB@ 50, 60 Hz at 3 Samples per Second
Maximum Common Mode Voltage 5V AC
Isolation Channel – EARTH 1.5KV 1 minute
Isolation Channel –Channel NA
Input Protection 30V AC/DC max

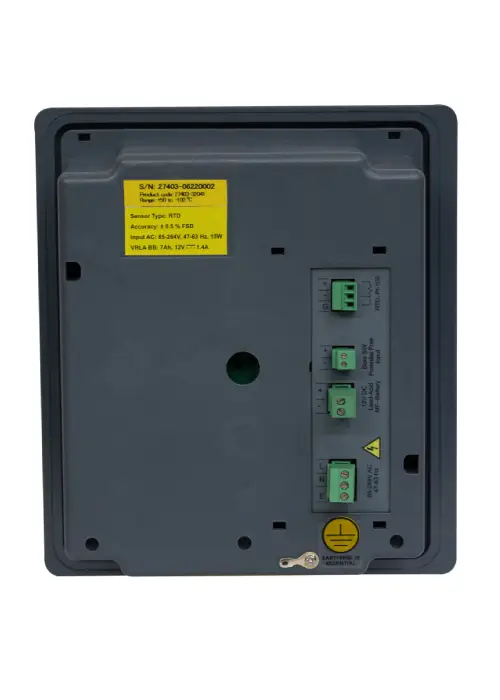

Termination Non interchangeable, Removable Plugs
Transmitter Power Supply Non Isolated 15V DC; 30mA max, un protected
Environmental
Temperature (Operation)5°C to 45°C
(Limiting) 0°C to 50°C
(Storage)-20°C to 60°C
Humidity (Operation) 10 to 80 % RH Non Condensing
(Storage) 5 to 90 % RH Non Condensing
Altitude <2000 meter
Power Requirement
Supply Voltage (Mains Operated) 85-264VAC 47-63Hz
Battery backup Yes
DC Adapter Operated Yes
Power 10W Max With Maximum Configuration
Fuse Type None
Battery Backup

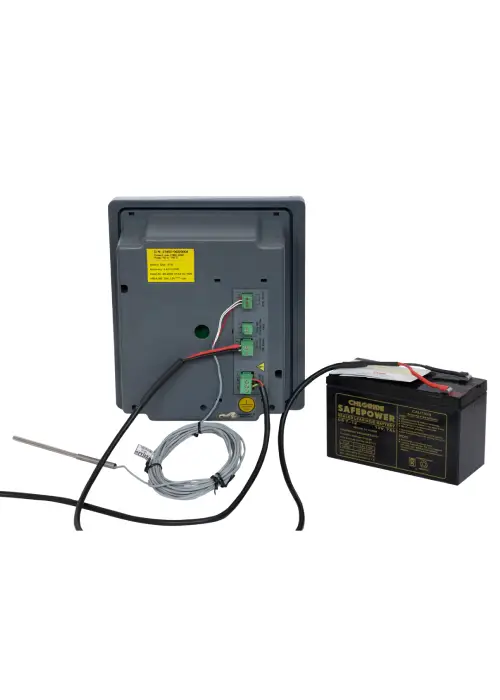

Battery 12V 7Ah External Lead Acid battery
Battery Charger Yes
Battery Reverse Polarity Protected
Minimum Back up >12Hrs.
Safety
Safety IEC 61010-1
EMI-EMC EN 61326-1 Class A
Pollution Degree II
Installation Category IV
Vibration 2g Peak (10 Hz-150Hz)
Shock IEC61010-1
IP Rating IP50 (Door and Bezel only)
Overall Dimension
Dimension L x W x D (mm) 232x205x117
Panel Cutout (mm) (L x W) 200×170
Bezel (mm) 232×205
Table : 1 Sensor Type, Range, Accuracy and Max Error Specification:
Input Type Valid Input Range Resolution Chart Accuracy Linearization Error(Max)
PT-100(RTD) -100 to +600˚C 2% +/- 0.5% FSD ±0.7˚C Max
Standard Available Chart Ranges :
Sr. No. Range** Speed Size Part No. Part Description
36 +20 to -10 (PS) 7D 6″ 308009 W620-10PS
37 +50 to -100 (PS) 7D 6″ 308008 W650-100PS
39 +40 to -10 (PS) 7D 6″ 308003 W640-10PS
40 -50 to + 50 (PS) 7D 6″ 210042 W6-5050PS
50 Other Please Specify

** First value in the chart is at the center of the Chart.

# PS: Pressure Sensitive Chart.

Specification listed are for each of the modules that can be fitted. Refer to the order code for the exact modules fitted in your system. Specifications for the modules that are not fitted, will not be applicable. Specifications are subject to change without notice.

Communication



Communication



Communication

1. Chart Pack of 100
Standard Available Chart Ranges and Their Part No.:

Sr. No. Range** Speed Size Part No. Part Description
36 +20 to -10 (PS) 7days/rev 6″ 308009 W620-10PS
37 +50 to -100 (PS) 7days/rev 6″ 308008 W650-100PS
39 +40 to -10 (PS) 7days/rev 6″ 308003 W640-10PS
40 -50 to + 50 (PS) 7days/rev 6″ 210042 W6-5050PS
50 Other Please Specify



** First value in the chart is at the center of the Chart.
# PS: Pressure Sensitive Chart for Data logging recorders



2. Panel Mount Clamps: (Available in Pair only)
Part No.: 210034
