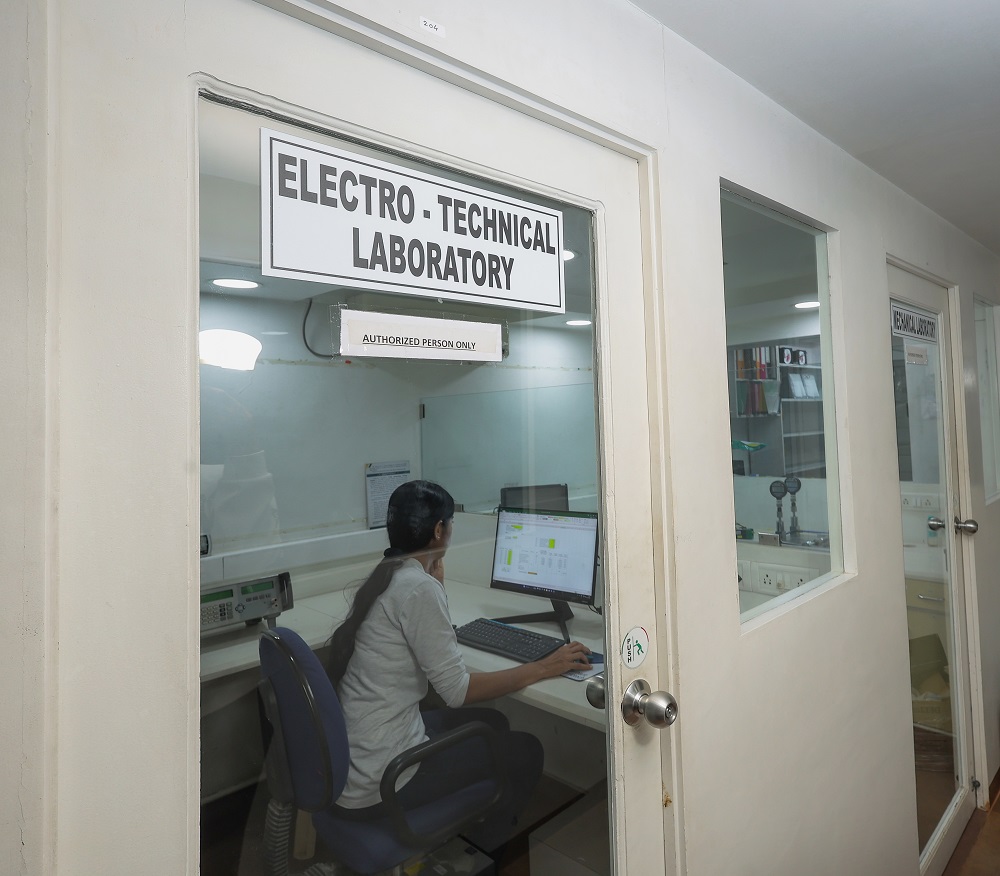

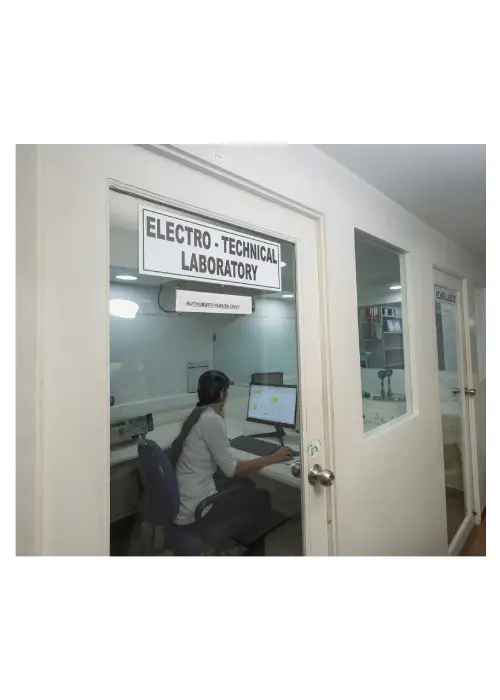

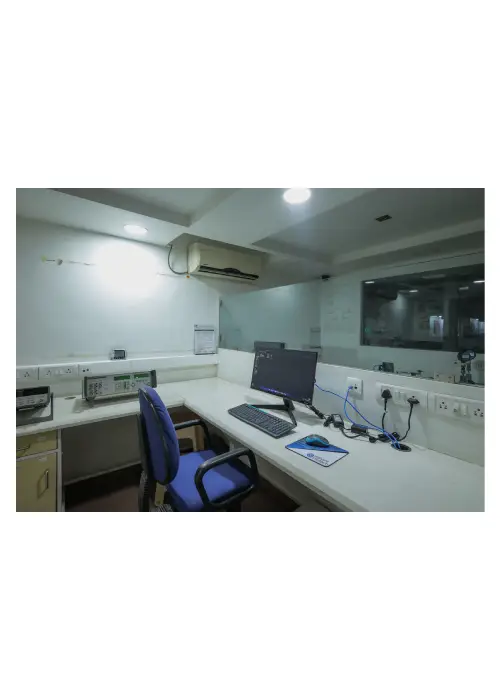

Electro Technical Calibration
We are a NABL accredited calibration laboratory as per international standard ISO/IEC 17025: 2017. At our laboratory, we possess the expertise to perform calibration services for a wide range of parameters including DC Voltage & Current, Resistance, Temperature simulation (RTD, T/C J, T/C K, T/C T, T/C E, T/C R, T/C B, T/C C, T/C N, T/C S) for both source & measure mode.
Electrical measuring instruments are the utmost significant tool, widely employed in the industrial sector starting from research and development to quality assurance and manufacturing process as well. The calibration of these instruments is essential to safeguard accurate readings and evaluate input and output signals, linearity, sensitivity, and other performance measuring specifications. Calibration guarantees the precision & reliability of electrical parameters which are crucial for sustaining the optimal effectiveness of electrical equipment & data generated.
We offer Electro technical calibration services for a variety of products such as multi-channel scanners, multi-channel data loggers, temperature indicators, temperature controllers, temperature indicating devices, digital multi-meter, voltage sources, current sources, & so forth.
Features
Key Features:
Calibrate up to:
- DC Current: 1 mA to 100 mA (Source & Measure Mode)
- DC Voltage: 1 mV to 100 V (Source & Measure Mode)
- Resistance: 5 ohm to 4 kohm (Source & Measure Mode)
- RTD: -200 to 800 °C (Source & Measure Mode)
- T/C B: 200 to 1820 °C (Source & Measure Mode)
- T/C C: 200 to 2300 °C (Source & Measure Mode)
- T/C E: -200 to 1000 °C (Source & Measure Mode)
- T/C J: -210 to 1200 °C (Source & Measure Mode)
- T/C K: -200 to 1300 °C (Source & Measure Mode)
- T/C N: -200 to 1300 °C (Source & Measure Mode)
- T/C R: -50 to 1768 °C (Source & Measure Mode)
- T/C S: -50 to 1768 °C (Source & Measure Mode)
- T/C T: -200 to 400 °C (Source & Measure Mode)
Specification
| S.No | Discipline/Group | Measurand or Reference Material/Type of instrument or material to be calibrated or measured / Quantity Measured /Instrument | Calibration or Measurement Method or procedure | Measurement range and additional parameters where applicable (Range and Frequency) | * Calibration and Measurement Capability (CMC)(±) |
| Permanent Facility | |||||

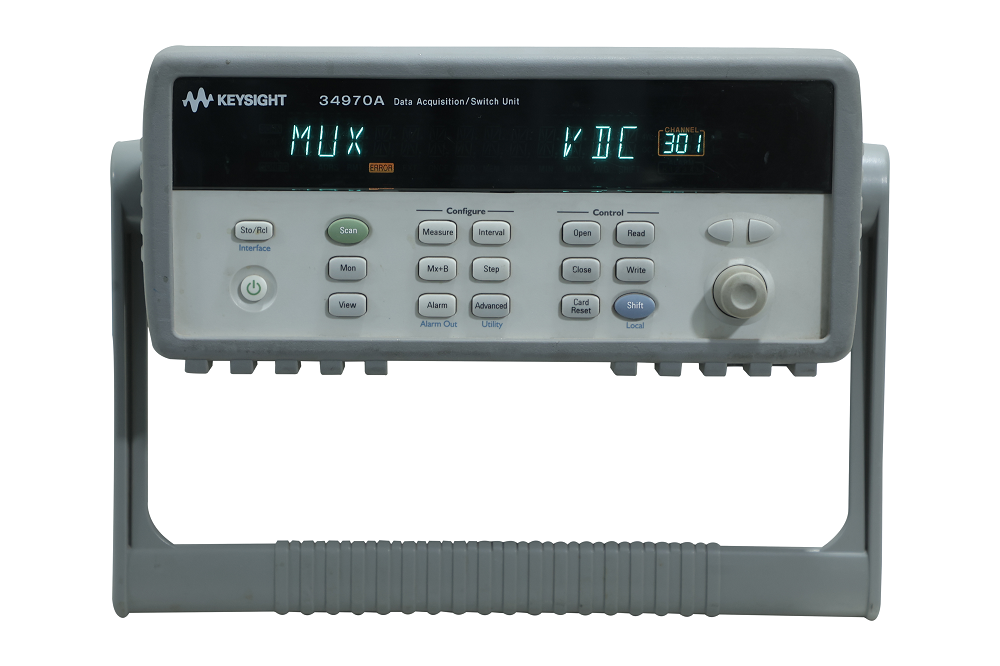

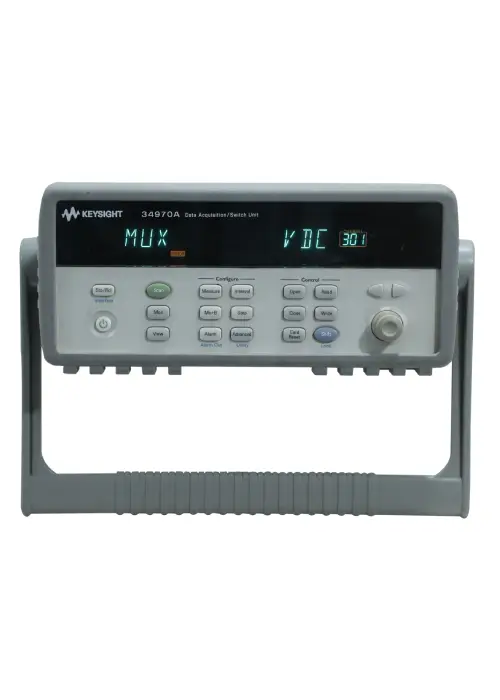

| 1 | ELECTRO-TECHNICAL – DIRECT CURRENT (Measure) | DC Current | Using 6½ Data Acquisition / Switch Unit by Direct Method | 1 mA to 10 mA | 0.3 % to 0.08 % |
| 2 | ELECTRO-TECHNICAL – DIRECT CURRENT (Measure) | DC Current | Using 6½ Data Acquisition / Switch Unit by Direct Method | 10 mA to 100 mA | 0.08 % to 0.064 % |
| 3 | ELECTRO-TECHNICAL – DIRECT CURRENT (Measure) | DC Voltage | Using 6½ Data Acquisition / Switch Unit by Direct Method | 1 mV to 100 mV | 0.49 % to 0.015 % |
| 4 | ELECTRO-TECHNICAL – DIRECT CURRENT (Measure) | DC Voltage | Using 6½ Data Acquisition / Switch Unit by Direct Method | 1 V to 10 V | 0.01 % to 0.005 % |
| 5 | ELECTRO-TECHNICAL – DIRECT CURRENT (Measure) | DC Voltage | Using 6½ Data Acquisition / Switch Unit by Direct Method | 10 V to 100 V | 0.005 % to 0.006 % |
| 6 | ELECTRO-TECHNICAL – DIRECT CURRENT (Measure) | DC Voltage | Using 6½ Data Acquisition / Switch Unit by Direct Method | 100 mV to 1 V | 0.015 % to 0.01 % |
| 7 | ELECTRO-TECHNICAL – DIRECT CURRENT (Measure) | Resistance (4 Wire) | Using 6½ Data Acquisition / Switch Unit by Direct Method | 1 kohm to 4 kohm | 0.059 % to 0.02 % |
| 8 | ELECTRO-TECHNICAL – DIRECT CURRENT (Measure) | Resistance (4 Wire) | Using 6½ Data Acquisition / Switch Unit by Direct Method | 1 ohm to 100 ohm | 0.75 % to 0.016 % |
| 9 | ELECTRO-TECHNICAL – DIRECT CURRENT (Measure) | Resistance (4 Wire) | Using 6½ Data Acquisition / Switch Unit by Direct Method | 100 ohm to 1 kohm | 0.016 % to 0.059 % |

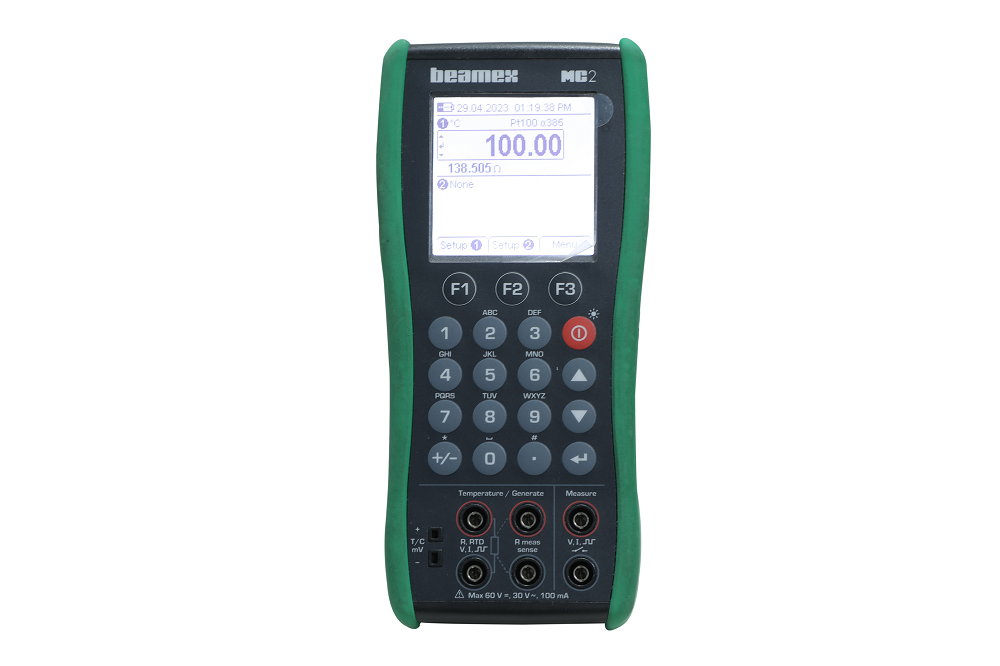

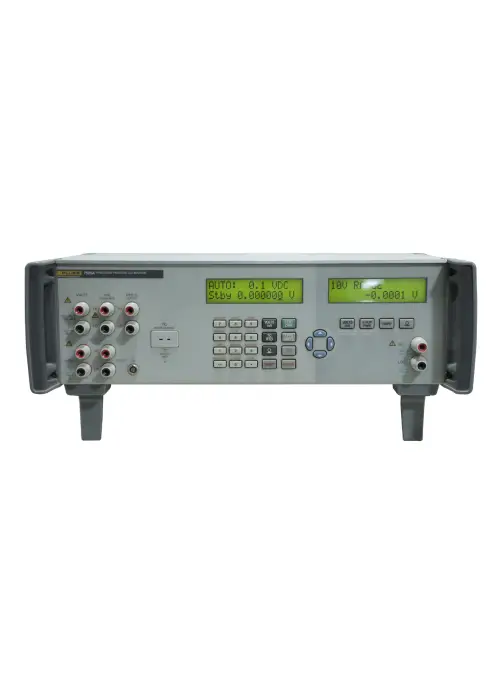

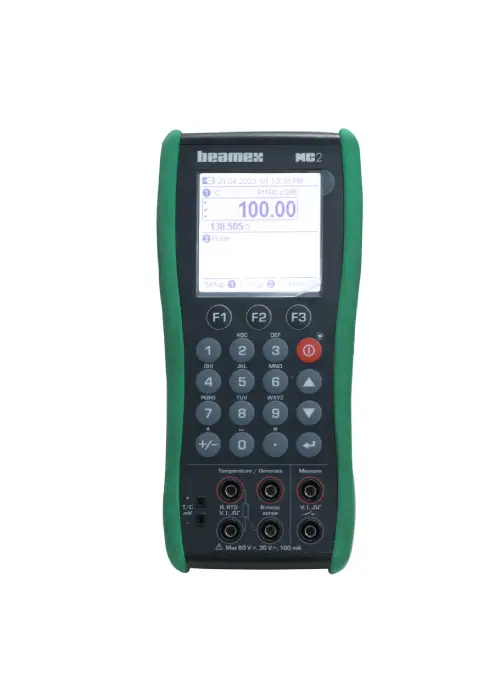

| 10 | ELECTRO-TECHNICAL – DIRECT CURRENT (Source) | DC Current | Using Precision Process Calibrator by Direct Method | 1 mA to 100 mA | 0.59 % to 0.01 % |
| 11 | ELECTRO-TECHNICAL – DIRECT CURRENT (Source) | DC Voltage | Using Precision Process Calibrator by Direct Method | 0.001 V to 0.1 V | 5.78 % to 0.058 % |
| 12 | ELECTRO-TECHNICAL – DIRECT CURRENT (Source) | DC Voltage | Using Precision Process Calibrator by Direct Method | 0.1 V to 1 V | 0.058 % to 0.007 % |
| 13 | ELECTRO-TECHNICAL – DIRECT CURRENT (Source) | DC Voltage | Using Precision Process Calibrator by Direct Method | 1 V to 10 V | 0.007 % |
| 14 | ELECTRO-TECHNICAL – DIRECT CURRENT (Source) | DC Voltage | Using Precision Process Calibrator by Direct Method | 10 V to 100 V | 0.007 % |
| 15 | ELECTRO-TECHNICAL – DIRECT CURRENT (Source) | Resistance (2 Wire) | Using Precision Process Calibrator by Direct Method | 400 ohm to 4000 ohm | 0.0047 % to 0.009 % |
| 16 | ELECTRO-TECHNICAL – DIRECT CURRENT (Source) | Resistance (2 Wire) | Using Precision Process Calibrator by Direct Method | 5 ohm to 400 ohm | 0.37 % to 0.0047 % |
| 17 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Measure) | RTD (PT100) | Using Precision Process Calibrator by Direct Method | (-) 200 °C to 800 °C | 0.08 °C |
| 18 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Measure) | Thermocouple – B Type | Using Precision Process Calibrator by Direct Method | 600 °C to 1800 °C | 0.41 °C |
| 19 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Measure) | Thermocouple – E Type | Using Precision Process Calibrator by Direct Method | (-) 250 °C to 1000 °C | 0.48 °C |
| 20 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Measure) | Thermocouple – J Type | Using Precision Process Calibrator by Direct Method | (-) 200 °C to 1200 °C | 0.16 °C |
| 21 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Measure) | Thermocouple – K Type | Using Precision Process Calibrator by Direct Method | (-) 200 °C to 1370 °C | 0.53 °C |
| 22 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Measure) | Thermocouple – N Type | Using Precision Process Calibrator by Direct Method | (-) 200 °C to 1300 °C | 0.27 °C |
| 23 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Measure) | Thermocouple – R Type | Using Precision Process Calibrator by Direct Method | (-) 50 °C to 1767 °C | 0.65 °C |
| 24 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Measure) | Thermocouple – S Type | Using Precision Process Calibrator by Direct Method | (-) 50 °C to 1767 °C | 0.6 °C |
| 25 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Measure) | Thermocouple – T Type | Using Precision Process Calibrator by Direct Method | (-) 200 °C to 400 °C | 0.2 °C |
| 26 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Source) | RTD (PT100) | Using Precision Process Calibrator by Direct Method | (-) 200 °C to 800 °C | 0.061 °C |
| 27 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Source) | Thermocouple – B Type | Using Precision Process Calibrator by Direct Method | 600 °C to 1800 °C | 0.41 °C |
| 28 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Source) | Thermocouple – E Type | Using Precision Process Calibrator by Direct Method | (-) 250 °C to 1000 °C | 0.3 °C |
| 29 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Source) | Thermocouple – J Type | Using Precision Process Calibrator by Direct Method | (-) 200 °C to 1200 °C | 0.18 °C |
| 30 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Source) | Thermocouple – K Type | Using Precision Process Calibrator by Direct Method | (-) 200 °C to 1370 °C | 0.53 °C |
| 31 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Source) | Thermocouple – N Type | Using Precision Process Calibrator by Direct Method | (-) 200 °C to 1300 °C | 0.28 °C |
| 32 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Source) | Thermocouple – R Type | Using Precision Process Calibrator by Direct Method | (-) 50 °C to 1767 °C | 0.64 °C |
| 33 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Source) | Thermocouple – S Type | Using Precision Process Calibrator by Direct Method | (-) 50 °C to 1767 °C | 0.6 °C |
| 34 | ELECTRO- TECHNICAL- TEMPERATURE SIMULATION (Source) | Thermocouple – T Type | Using Precision Process Calibrator by Direct Method | (-) 200 °C to 400 °C | 0.2 °C |
