LM Pro IN074

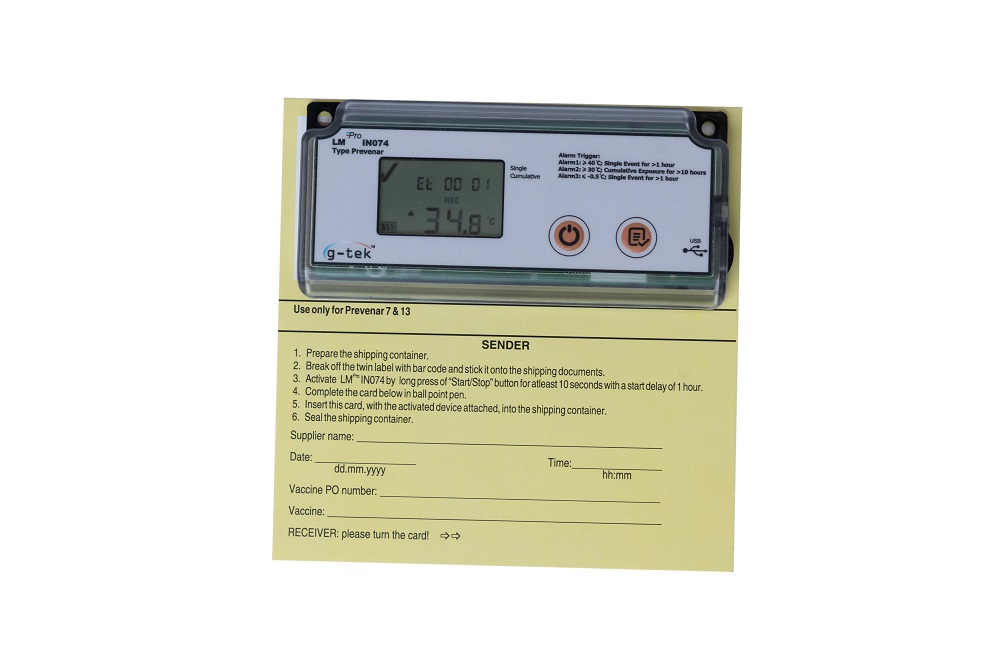

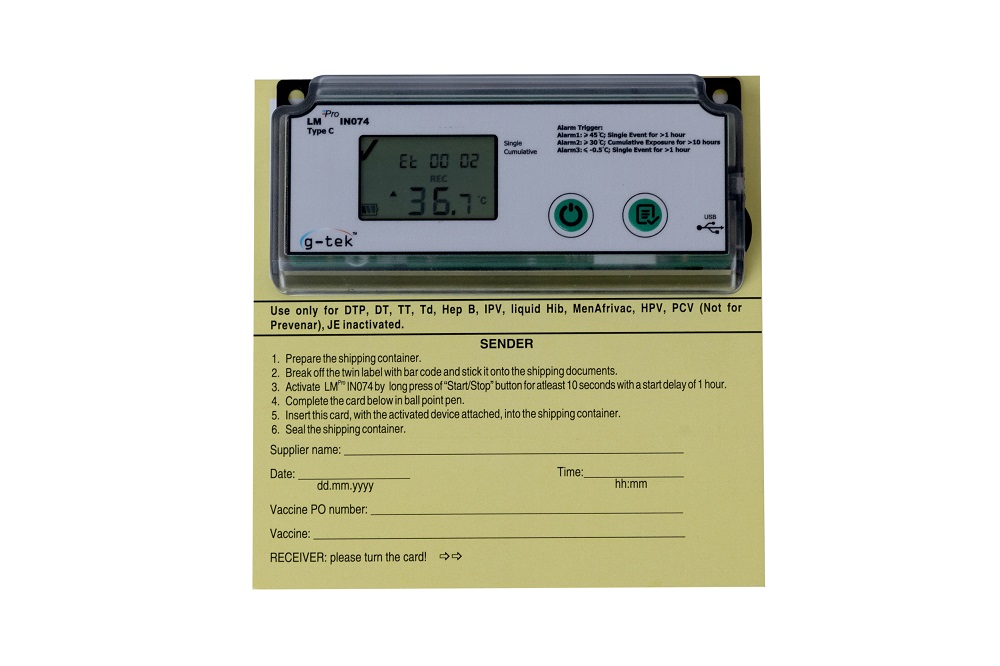

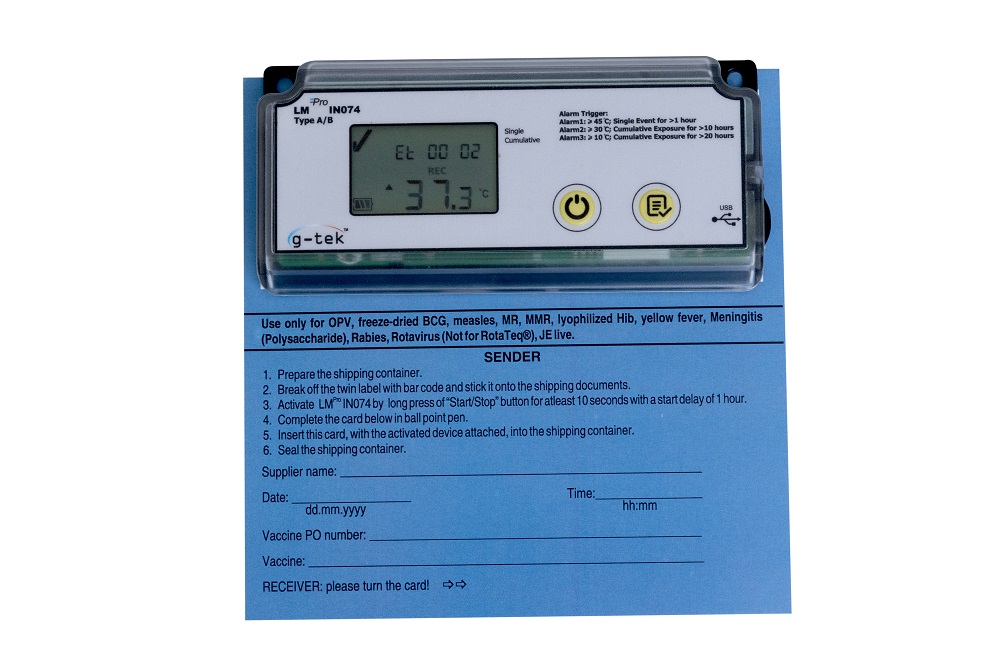

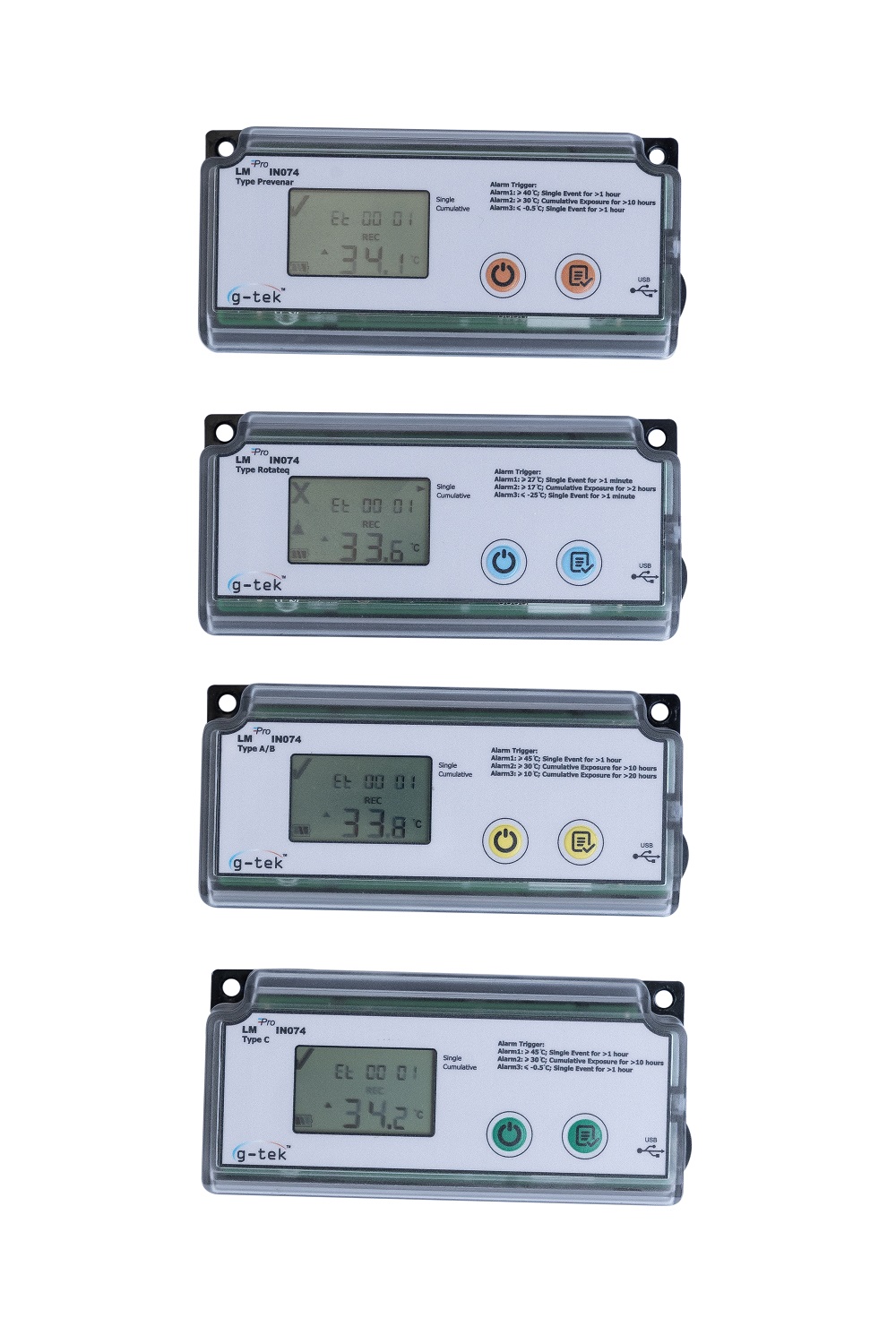

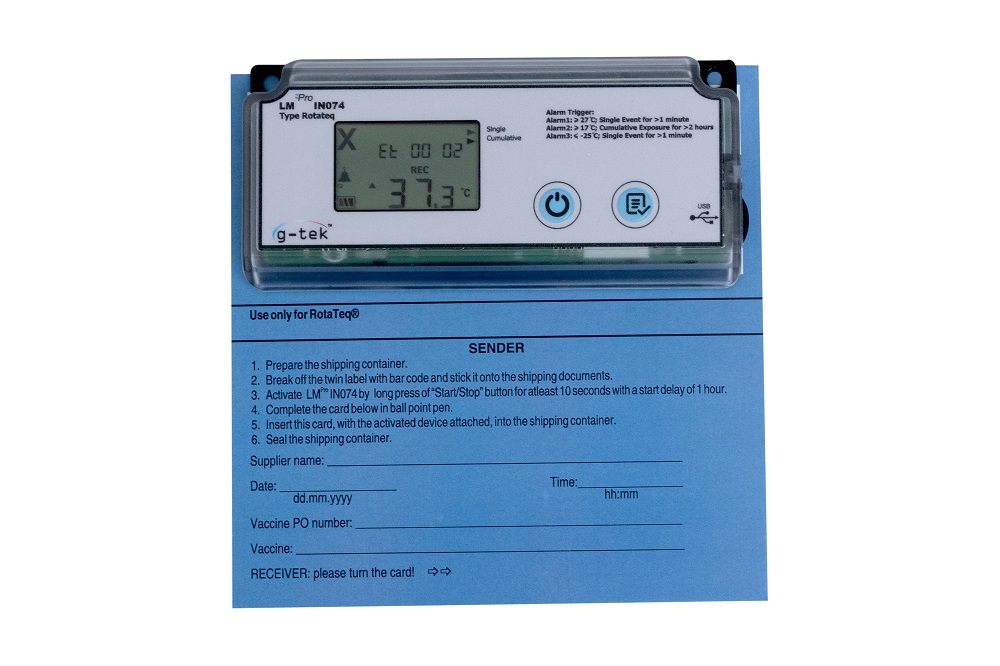

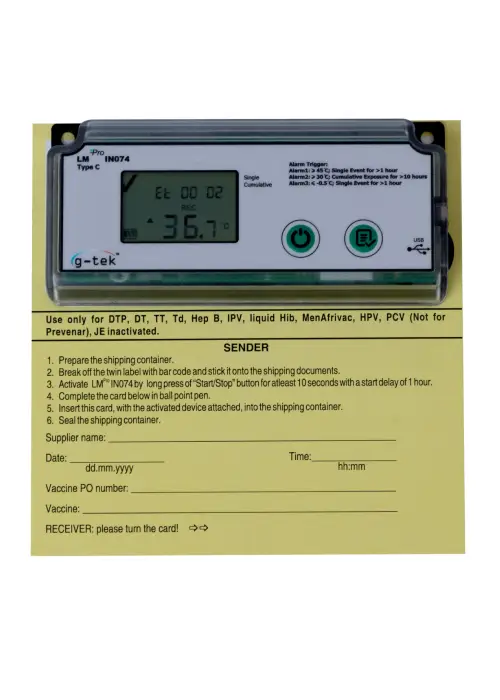

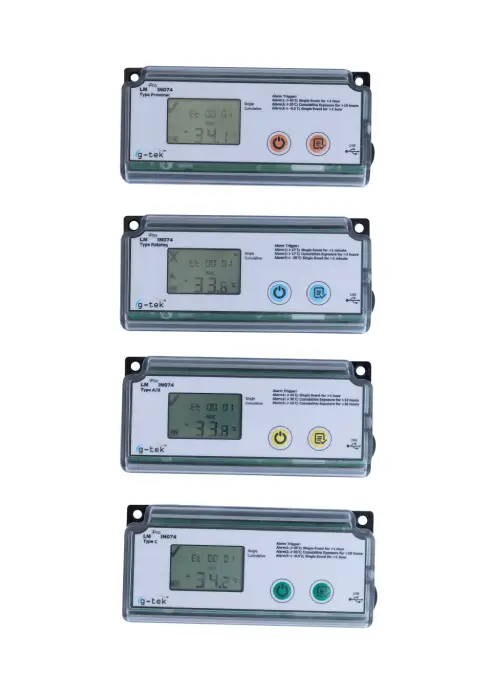

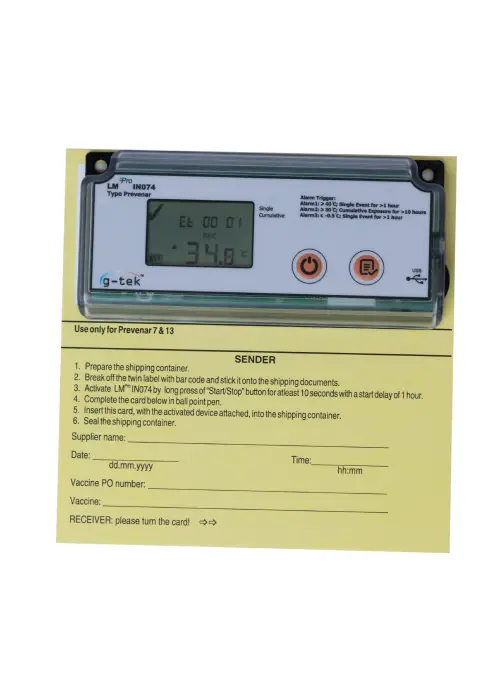

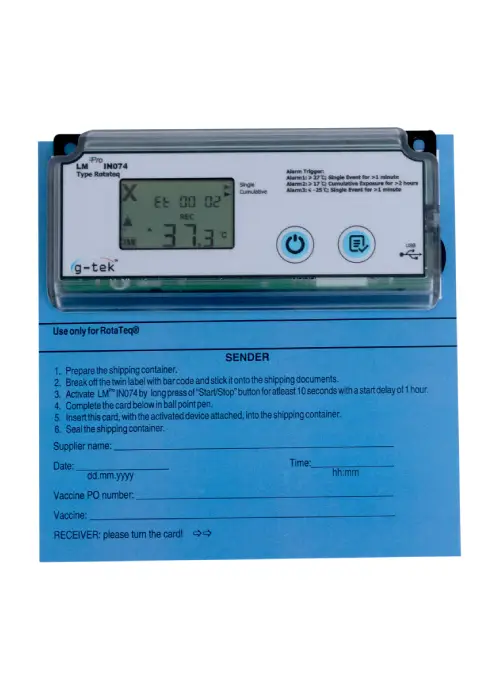

The LM Pro IN074 series are single use, cost effective and reliable 40 days Electronic Shipping Indicator in support of vaccine procurement and transport requirement. It shows if a vaccine is exposed to time-temperature limits beyond stipulated by WHO/PQS/E06/TR07.4. There are four models to choose from, based on the vaccines being transported – Type Prevenar, Type Rotateq, Type A/B and Type C.
An electronic temperature sensor along with LCD display indicates “✔” if the product has remained within exposure limits. If the product is exposed beyond time- temperature limits as specified based on the type of vaccine, the display shows “X”. It stores the data up to 40 days and user can see the history data of entire journey of vaccine using keyboard and display. For easy photocopying, the display is non-flashing.
It is accompanied by a Shipment Information Card. User can generate the pdf report which provides a detailed temperature history of the trip for transportation records. Time stamps on alarm events allow supply chain partners to analyze variability and institute corrective measures based on elapsed time. All the parameters and alarm limits are pre-configured and it comes with individual NABL traceable calibration certificate.
Features
Key Features:
- 40 days of data storage
- Sensor operating range of -30 °C to +60 °C
- Display and Storage resolution of 0.1 °C
- Operating battery life of 6 months
- Shelf life of 18 months
- The battery life indicator on display
- Delayed Batch start
- Three factory-configurable time-temperature alarms
- Two types of Alarms- single and cumulative
- Tags for Alarm trigger/reset condition
- Visual Alarm Indication
- IP65 rating
*Features depends on the product ordered. Please refer to the order code (Model No) of your product for exact features and capabilities.
Specification
| Model | LMPro IN074 – Electronic Shipping Indicator |
| General | |
| Integrated Sensor | Thermistor – 10K NTC |
| Temperature Measurement Range | -30 °C to + 60 °C (-22 °F to +140 °F) |
| Accuracy | ± 0.5 °C for the range -30 °C to + 45 °C
± 0.7 °C otherwise |
| Resolution | 0.1 °C display and storage |
| Unit of Measurement | Data storage and display in °C |
| Calibration | Each Electronic Shipping Indicator accompanies NABL (ISO/IEC 17025) traceable certificate |
| Alarm | Visual – Temperature reading on display along with ↑or ↓ arrow, bell, alarm type symbols for high/medium/low threshold |
| Alarm Settings* | Type C:
Alarm1: High Threshold: >= 45 °C; Single event for >1 hour Alarm2: Medium Threshold: >=30 °C; cumulative exposure for >10 hours Alarm3: Low Threshold: <= -0.5 °C; Single event for >1 hour |
| Type A/B:
Alarm1: High Threshold: >= 45 °C; Single event for >1 hour Alarm2: Medium Threshold: >=30 °C; cumulative exposure for >10 hours Alarm3: Low Threshold: >= 10 °C; cumulative exposure for >20 hours |
|
| Type Rotateq:
Alarm1: High Threshold: >= 27 °C; Single event for >1 minute Alarm2: Medium Threshold: >=17 °C; cumulative exposure for >2 hours Alarm3: Low Threshold: <= -25 °C; Single event for >1 minute |
|
| Type Prevenar:
Alarm1: High Threshold: >= 40 °C; Single event for >1 hour Alarm2: Medium Threshold: >=30 °C; cumulative exposure for >10 hours Alarm3: Low Threshold: <= -0.5 °C; Single event for >1 hour |
|
| Response Time | T90 < 10 minutes as per EN12830:1999 |
| Logging Interval* | Measurement interval 1 minute and
Data store interval 5 minutes, pre-Fixed |
| Logging Start Delay* | 60 mins after start of the device |
| Power Requirement | |
| Battery | Non-Replaceable 3.0 V 620 mAh; CR2450 Panasonic (or Equivalent) Coin Cell Battery |
| Battery Life | Storage before Start: 18 months
Recording Period: 40 days Data retention period after stop: 6 months |
| Environmental Specification | |
| Temperature during Transportation and Storage – Device inactivated | -30 ˚C to 60 ˚C |
| Temperature during operation | -30 ˚C to 60˚C (EN12830:1999 Table3, Climatic Type C) |
| Humidity During Transportation, Storage, and usage | 0 to 95% RH non-condensing |
| PC Interface and Software | |
| PC Interface | Data of max. 40 days can be extracted using LMViewIN-074 software. History data of 40 days can be seen using the device keyboard and display without attaching to PC. |
| Software Compatibility | LMViewIN-074 is compatible with Windows Operating System currently supported by Microsoft |
| Connectivity | USB 2.0, USB 3.0 Compatible; Data Download Time: approx. 6 minutes for full data download |
| Human Interface | |
| Display Type | Character LCD Display with Min/Max, Battery Level Indication, OK/Alarm, calendar, clock, duration, delay counter, Alarm high and Low, single/cumulative alarm, Bell, REC indication and Current reading with measurement unit.
The display is static, which allows photocopying. |
| Memory Size | 40 days overview on the display/ PDF report at store interval of 5 minutes using LMViewIN-074 Software |
| Activation | Device activation by long press of “Start/Stop” button for more than 10 seconds. Please refer to the operating manual for more details. |
| De-Activation | Device will automatically be deactivated at the end of 40 day recording period.
For manual deactivation of the device, press “ Start/Stop ” button again for 10 seconds (To avoid wrong trigger, if the button is pressed for more than 30 seconds, device will not be stopped.). |
| Type Identification | Clearly marked for Type C, Type A/B, Type Rotateq and Type Prevenar on devices with different colored casing. |
| Shipment Information Card | 14 x 14 cms; Yellow for Type C and Prevenar and Blue for Type A/B and Rotateq. Card material accepts indelible markings in ball point pen. User instructions are available in English, French or Spanish as per customer request. |
| Power ON Indication | All Segments on Display turn ON at activation |
| Mounting of Device | Through moisture resistant adhesive on shipment card/ provided mounting holes on the device. Refer to operating manual for details |
| Material | Polycarbonate Plastic: non-breakable, non-corrodible housing |
| Warranty | 15 months from the date of dispatch. Refer to warranty certificate for more details. |
| Service Provision | No user serviceable parts inside. |
| Physical Characteristics | |
| Overall Dimension
(L x W x H) mm |
128 x 60 x 16 mm |
| Weight | Approximate 100 gms |
| Standards | |
| Electromagnetic Compatibility | IEC 61000-6-2/6-3 |
| Resistance to Electrical Storms | IEC 61000-6-2; (IEC 61000-4-2 Basic Standard for applicability of tests) |
| IP Rating | IEC 60529: IP 65 |
| Impact Resistance | 5 drops from 1 meter onto concrete floor at room temperature with battery in place. Device does not get damaged and there is no loss of calibration. |
| Vibration | EN12830:1999 Clause 4.9.3.2 and Test Method 5.6.6 |
| RoHS | Compliant (EU directive 2011/65/EU) |
| Verification | In accordance with PQS verification protocol E006/TR07-VP.4 |
*: Current settings are pre-fixed from factory as per requirements of WHO/PQS/E006/TR07.4. Other settings are available on request.
Accessories
- USB cable
- Device calibration certificate
- LM Pro IN074 Literature
- LM Pro IN074 Operating Manual_Arabic
- LM Pro IN074 Operating Manual_Chinese
- LM Pro IN074 Operating Manual_English
- LM Pro IN074 Operating Manual_French
- LM Pro IN074 Operating Manual_Hindi
- LM Pro IN074 Operating Manual_Russian
- LM Pro IN074 Operating Manual_Spanish
- Multi Lingual Quick start guide LM Pro IN074
- WHO-PQS-E006_096-Certificate
